Scientists set new stability record with ytterbium atomic clock

The story of scientific advancement is rarely one of leaps and bounds. More often than not it's evolution over revolution, and the story of the so-called ytterbium atomic clock fits that bill perfectly. You may remember that in July researchers improved upon the standard, cesium-powered atomic clock model by using a network of lasers to trap and excite strontium; instead of losing a second every few years, the Optical Lattice Clock only lost a second every three centuries. Researchers at the National Institute of Standards and Technology made a pretty simple tweak to that model: replace the strontium with ytterbium and, voilà, another ten-fold increase in stability. Ten thousand of the rare-earth atoms are held in place, cooled to 10 microKelvin (just a few millionths of a degree above absolute zero) and excited by a laser "tick" 518 trillion times per second. Whereas the average cesium atomic clock must run for roughly five days to achieve its comparatively paltry level of consistency, the ytterbium clock reaches peak stability in just a single second.

That stability doesn't necessarily translate into accuracy, but chances are good that it will. That could could mean more accurate measurements of how gravity effects time and lead to improvements in accuracy for GPS or its future equivalents. The next steps are pretty clear, though hardly simple: to see how much farther the accuracy and stability can be pushed, then shrink the clock down to a size that could fit on a satellite or space ship. The one currently in use at the NIST is roughly the size of a large dining room table.

Show full PR text

NIST Ytterbium Atomic Clocks Set Record for Stability
From NIST Tech Beat: August 22, 2013

A pair of experimental atomic clocks based on ytterbium atoms at the National Institute of Standards and Technology (NIST) has set a new record for stability. The clocks act like 21st-century pendulums or metronomes that could swing back and forth with perfect timing for a period comparable to the age of the universe.

NIST physicists report in the Aug. 22 issue of Science Express that the ytterbium clocks' tick is more stable than any other atomic clock.* Stability can be thought of as how precisely the duration of each tick matches every other tick. The ytterbium clock ticks are stable to within less than two parts in 1 quintillion (1 followed by 18 zeros), roughly 10 times better than the previous best published results for other atomic clocks.

This dramatic breakthrough has the potential for significant impacts not only on timekeeping, but also on a broad range of sensors measuring quantities that have tiny effects on the ticking rate of atomic clocks, including gravity, magnetic fields, and temperature. And it is a major step in the evolution of next-generation atomic clocks under development worldwide, including at NIST and at JILA, the joint research institute operated by NIST and the University of Colorado Boulder.

"The stability of the ytterbium lattice clocks opens the door to a number of exciting practical applications of high-performance timekeeping," NIST physicist and co-author Andrew Ludlow says.

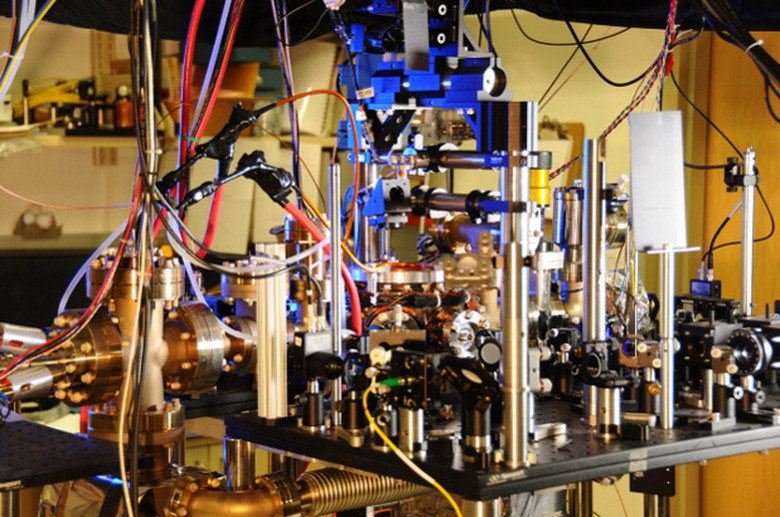

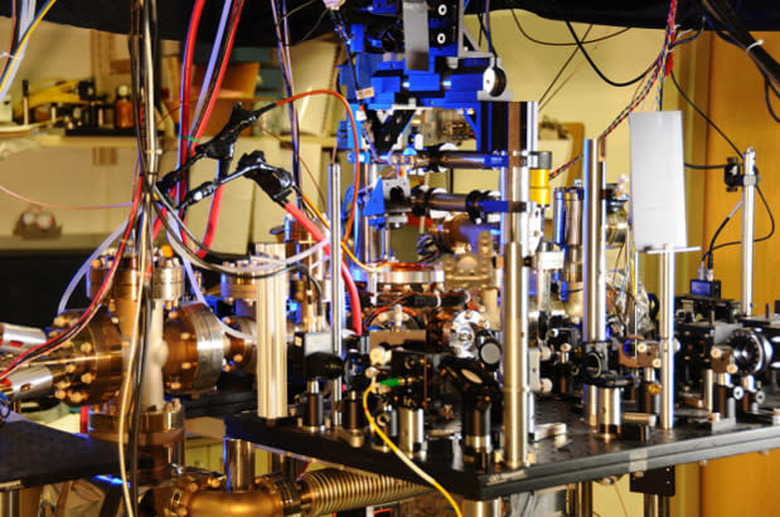

Each of NIST's ytterbium clocks relies on about 10,000 rare-earth atoms cooled to 10 microkelvin (10 millionths of a degree above absolute zero) and trapped in an optical lattice-a series of pancake-shaped wells made of laser light. Another laser that "ticks" 518 trillion times per second provokes a transition between two energy levels in the atoms. The large number of atoms is key to the clocks' high stability.
The ticks of any atomic clock must be averaged for some period to provide the best results. One key benefit of the very high stability of the ytterbium clocks is that precise results can be achieved very quickly. For example, the current U.S. civilian time standard, the NIST-F1 cesium fountain clock, must be averaged for about 400,000 seconds (about five days) to achieve its best performance. The new ytterbium clocks achieve that same result in about one second of averaging time.

Given this high level of stability the ytterbium clocks can make measurements extremely rapidly-in real time in many cases-which could be important in rapidly changing application settings, such as the factory floor and the natural environment.

A key advance enabling the milestone performance of the ytterbium clocks was the recent construction of a second version of the clock to measure and improve the performance of the original, developed since 2003. Along the way, NIST scientists have made several improvements to both clocks, including the development of an ultra-low-noise laser used to excite the atoms, and the discovery of a method to cancel disruptive effects caused by collisions between atoms.

The ytterbium clocks' stability record is different from the performance levels previously publicized for NIST-F1, which is traceable to the international system of units, and NIST experimental optical clocks based on single ions, such as the aluminum quantum logic clock or the mercury ion clock.** NIST-F1 and the ion clocks were evaluated based on systematic uncertainty, another important metric for standard atomic clocks. NIST-F1's performance is described in terms of accuracy, which refers to how closely the clock realizes the cesium atom's known frequency, or natural vibration rate. Accuracy is crucial for time measurements that must be traced to a primary standard.

NIST scientists plan to measure the accuracy of the ytterbium clocks in the near future, and the accuracy of other high performance optical atomic clocks is under study at NIST and JILA. The research is funded in part by the Defense Advanced Research Projects Agency and the National Aeronautics and Space Administration (NASA).
