    Panasonic Lumix S5 review: Incredible video power in a smaller package

    It has more 4K power than the S1 and faster autofocus.
    Steve Dent, @stevetdent
    September 2, 2020
    139 Shares
    Share
    Tweet
    Share

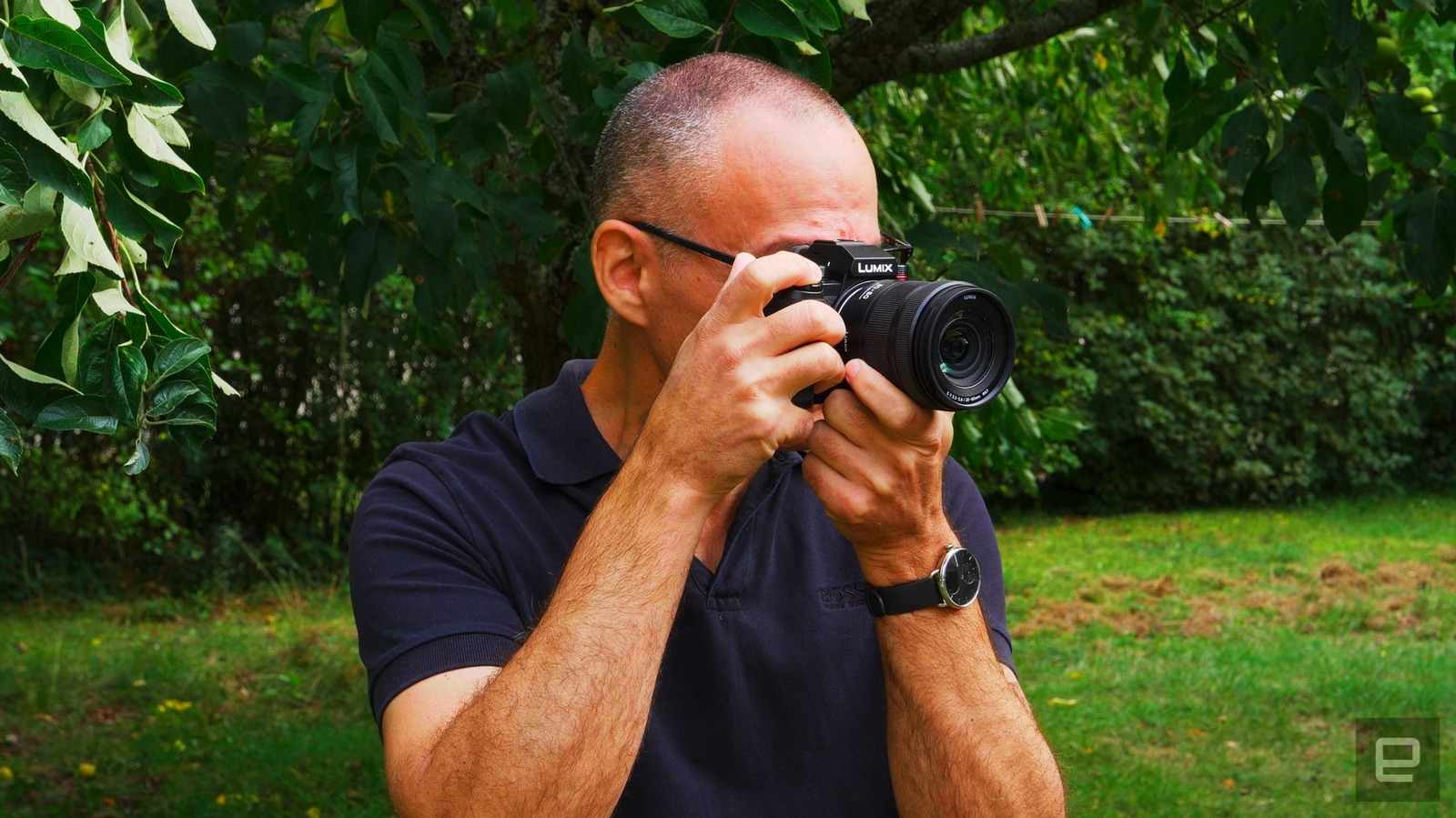

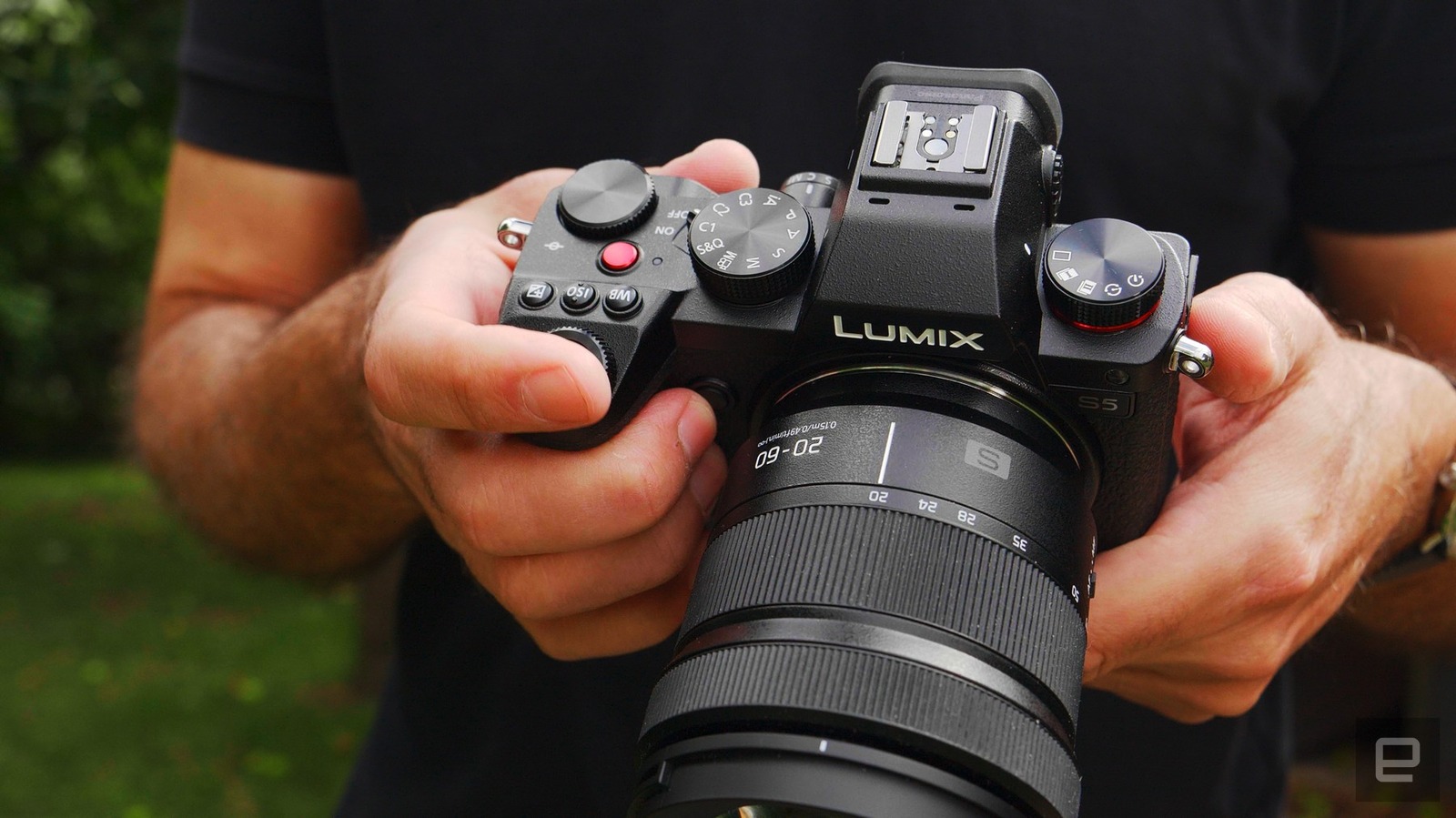

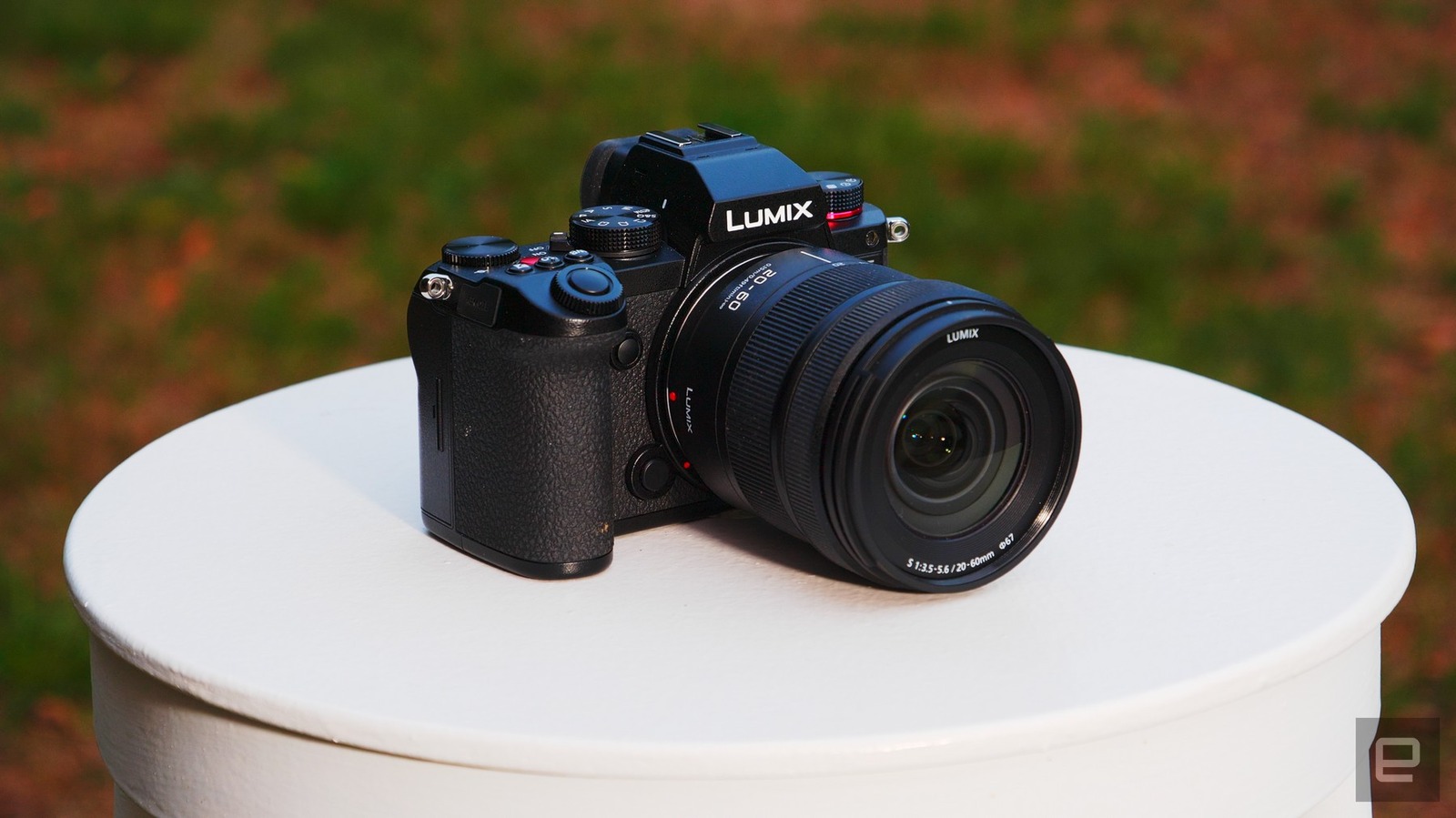

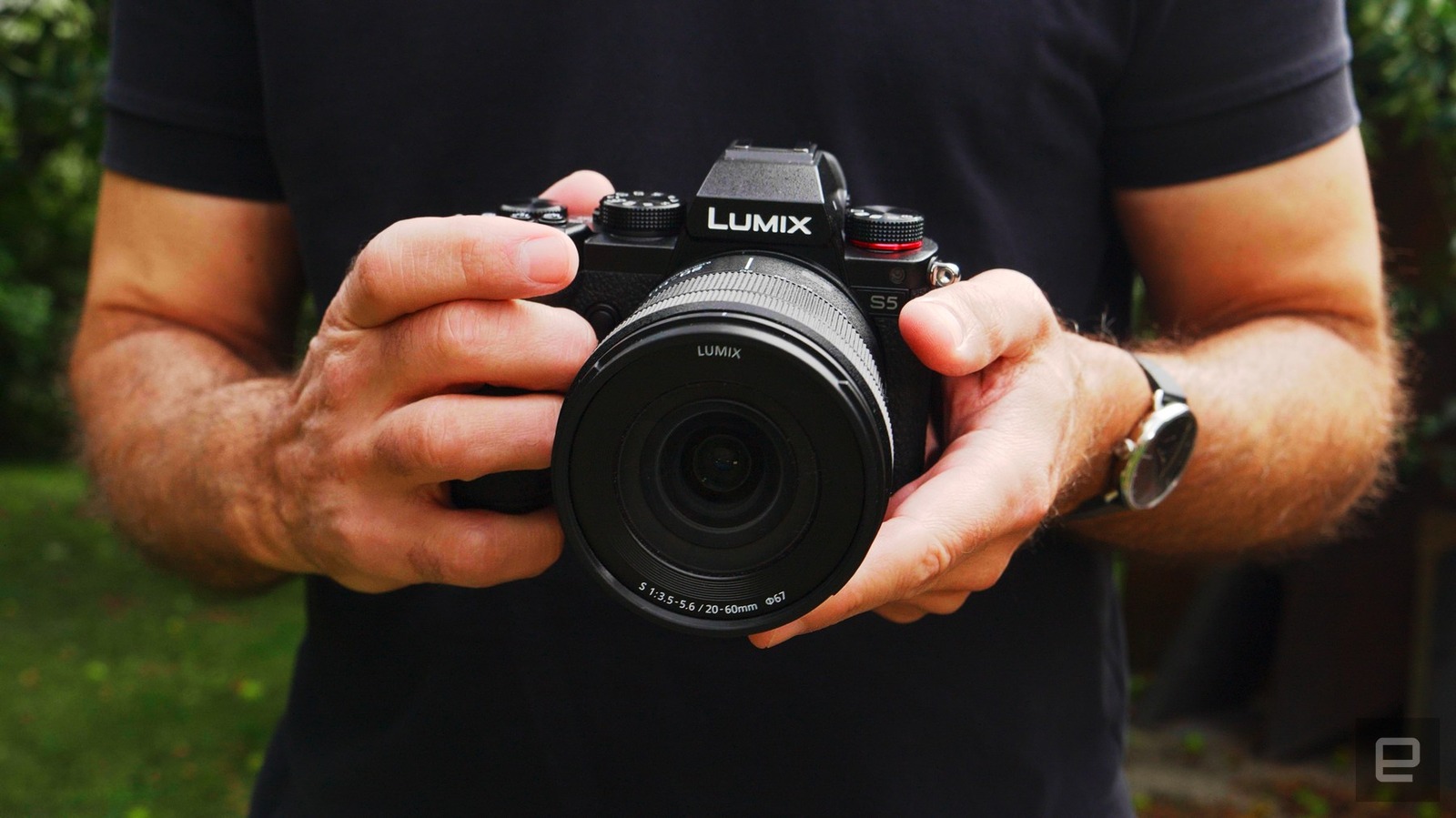

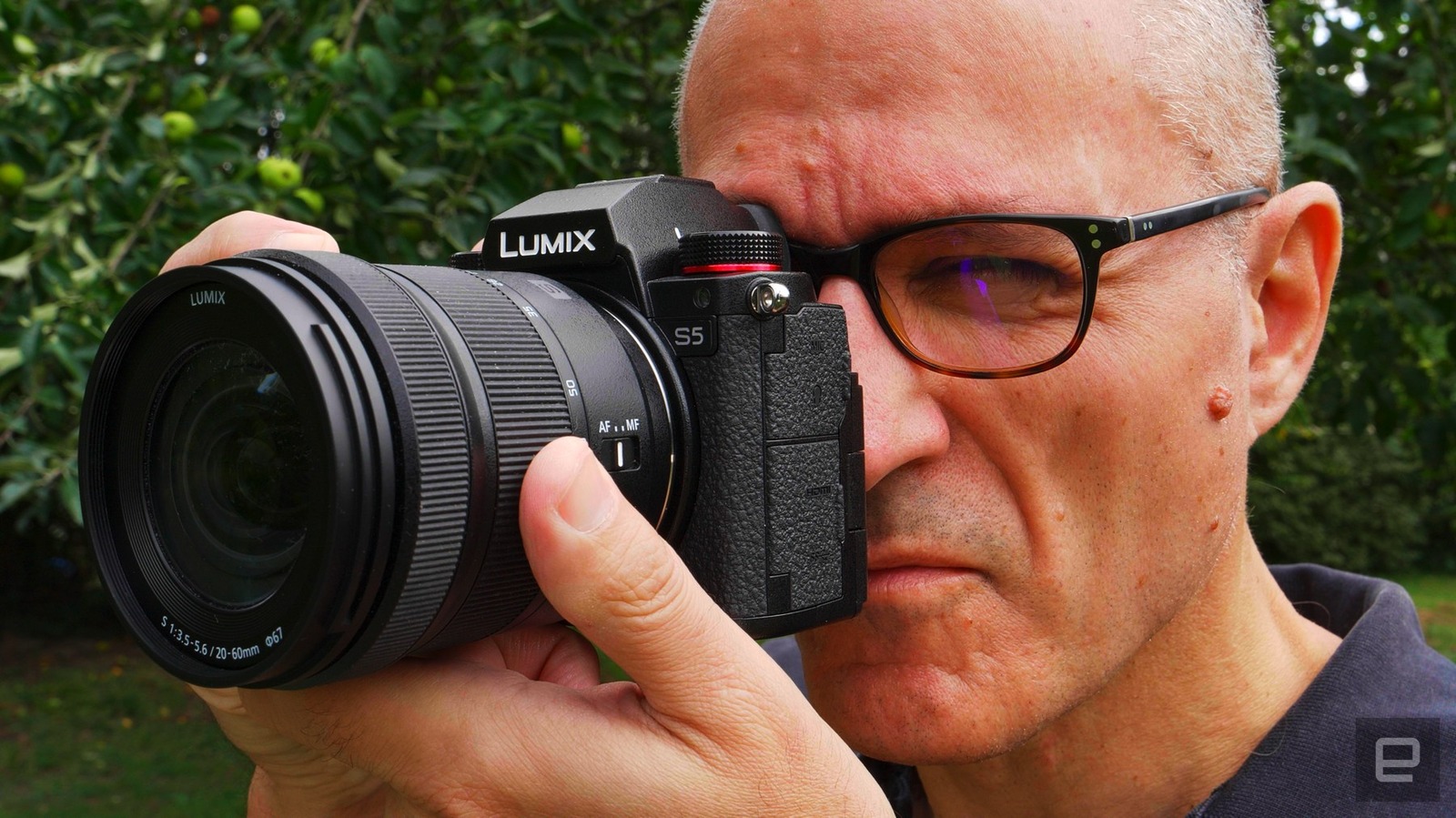

    Panasonic S5 review: Incredible video power in a smaller package
    Steve Dent/Engadget

    Sponsored Links

    With its S1 series, Panasonic has enjoyed a monopoly on full-frame mirrorless cameras that record high-quality 10-bit 4K video. However, in the last month or two, Canon and Sony released formidable video-centric cameras that can match the S1 for video, while being considerably smaller than the two-pound-plus S1. Now, Panasonic has responded with the full-frame Lumix S5. It takes nearly everything that’s good about the Lumix S1 and puts it into a much smaller and lighter body.

    The S5 retains key S1 video features like 10-bit 4K video, five-axis in-body stabilization and a flip-out display and, to top things off, it has a new and improved autofocus system that’s faster than what you’ll find on Panasonic’s larger full-frame S1 cameras.

    Engadget Score
    Poor
    Uninspiring
    Good
    Excellent
    Key

    Pros
    • 4K 10-bit video
    • 5-axis stabilization
    • Flip-out display
    • Compact size
    • Faster autofocus
    Cons
    • Poor contrast-detect autofocus
    • Poor electronic viewfinder
    • Slow photo burst speeds

    Summary

    The Lumix S5 is Panasonic’s answer to Canon’s EOS R6 and is the best video-centric camera in its price range. It’s smaller and costs less than the Lumix S1, but it actually delivers better video features. That includes a flip-out display, five-axis in-body stabilization and 10-bit 4K recording at up to 60 fps. The autofocus is faster and more accurate than the S1, but not as good as Sony and Canon’s systems for video. It has a poor electronic viewfinder, and while it delivers sharp and color-accurate photos, you’ll never mistake it for an action camera because of the low burst speeds.

    Be the first to review the Lumix S5?
    Your ratings help us make the buyer’s guide better for everyone.
    Write a review

    Given that it seems to be more powerful than the S1 and yet costs $500 less, is there a catch? To find out, I put a pre-production model through its paces around Paris and in the French countryside to see what it could, and couldn’t do.

    Body and handling

    Gallery: Panasonic S5 full-frame mirrorless camera gallery | 27 Photos

    With the S5, Panasonic finally has a full-frame camera that’s as small as rival models like Sony’s A7 III and the Nikon Z6. At 714 grams with a battery and memory card, it weighs slightly more than the A7 III and Z6. However, it’s nearly 300 grams or 0.7 pounds lighter than the S1. At the same time, the S5 has a magnesium-alloy body designed to disperse heat, so it doesn’t suffer from overheating issues like its rival, Canon’s EOS R6 (more on that shortly).

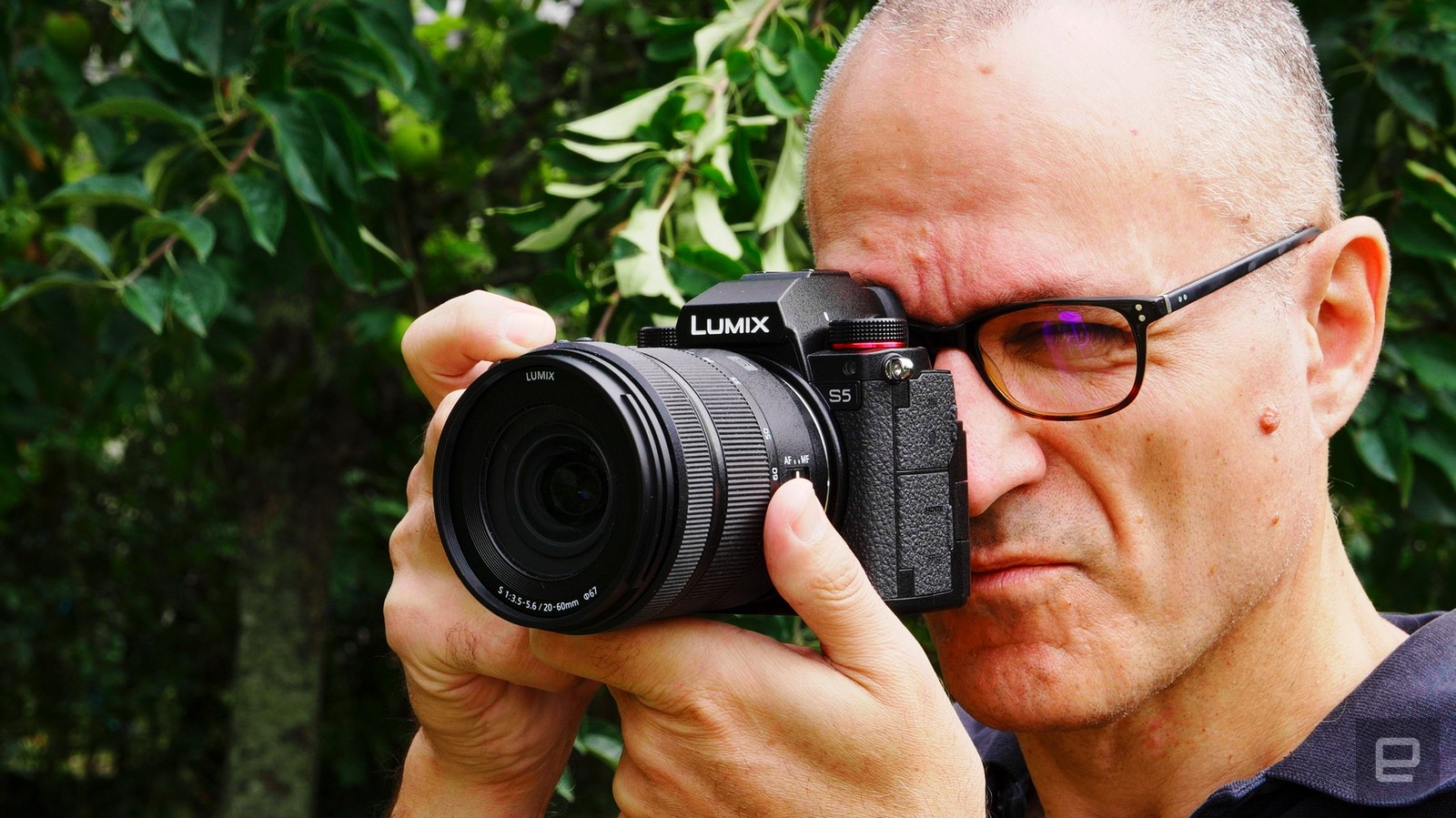

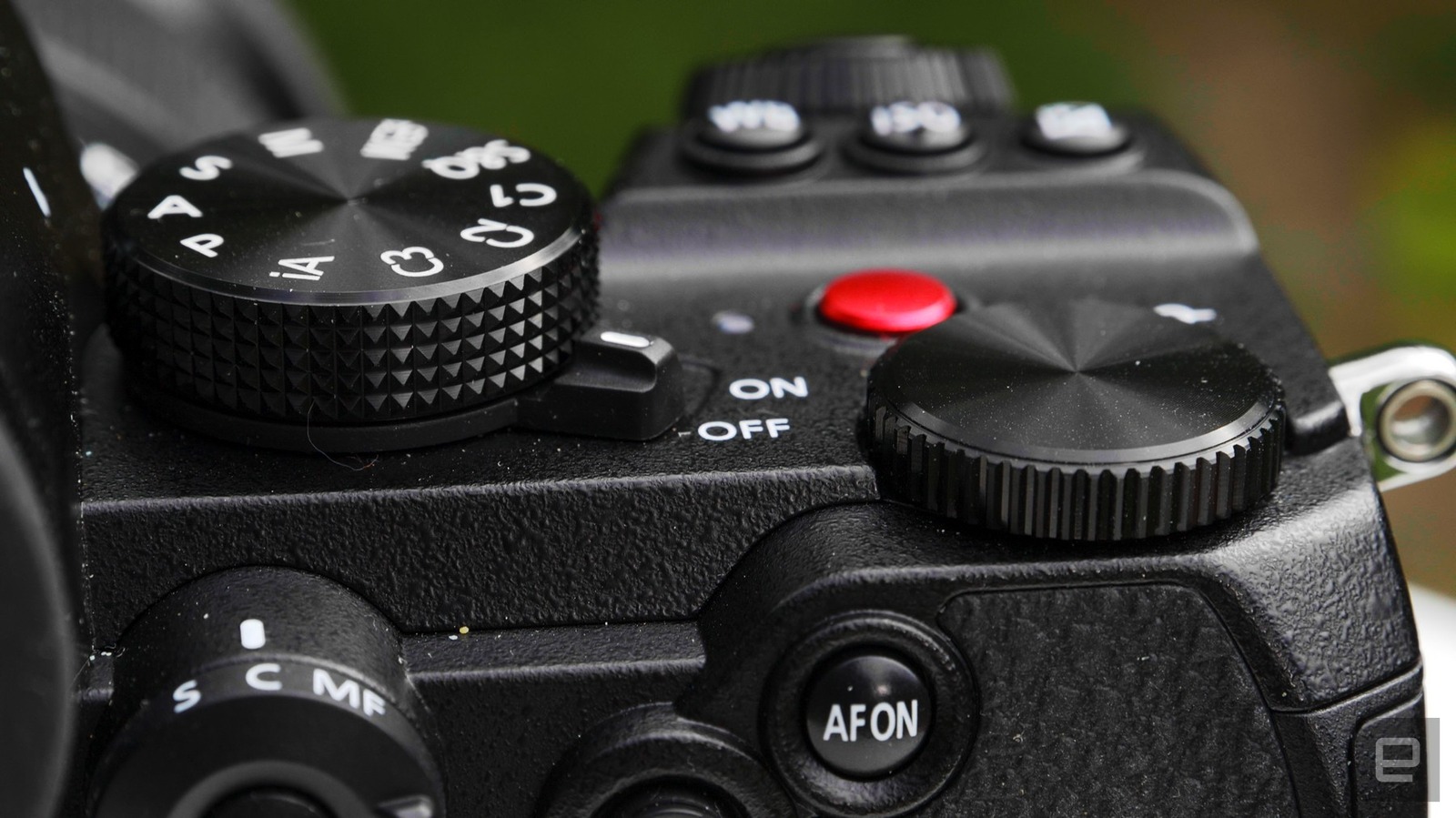

    I loved the S1’s handling, but I found that the S5 was just as good and even better than the A7 III and Nikon Z6. It has a nice big grip, to start with, along with lots of manual controls that let you set burst shooting, shutter, aperture, ISO and other controls without ever diving into a menu.

    In fact, if you set up your buttons and the quick menu correctly, you should rarely — if ever — need to explore the main menus. If you do, Panasonic has updated those to make them more logical and easier to navigate.

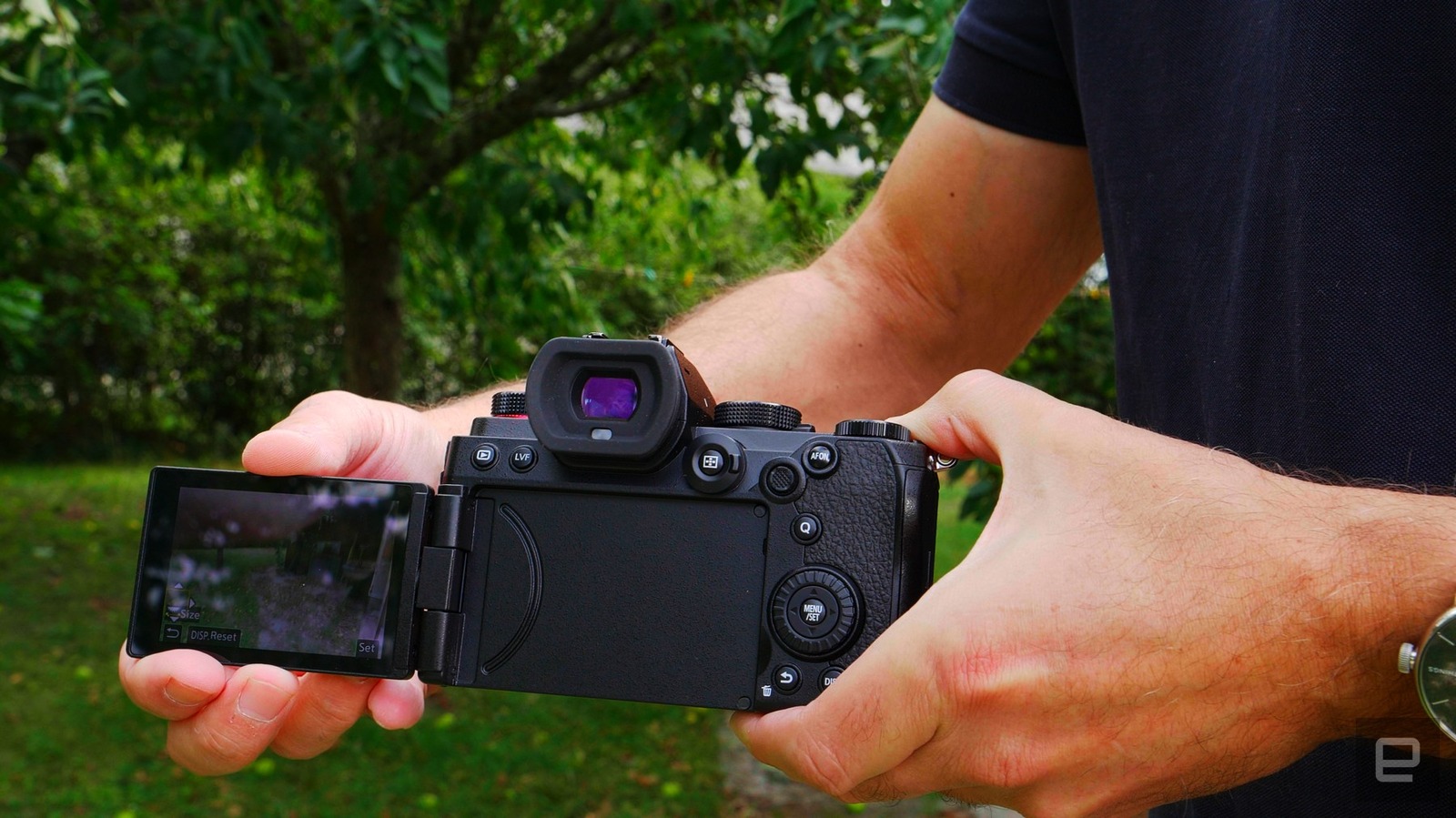

    Navigation is further aided by the fact that you can operate the menus, along with the focus and other functions, directly from the touch display. It also flips out to the side and rotates 270 degrees so that you can see yourself, which makes the S5 a very good vlogging and selfie camera. It’s incredibly versatile.

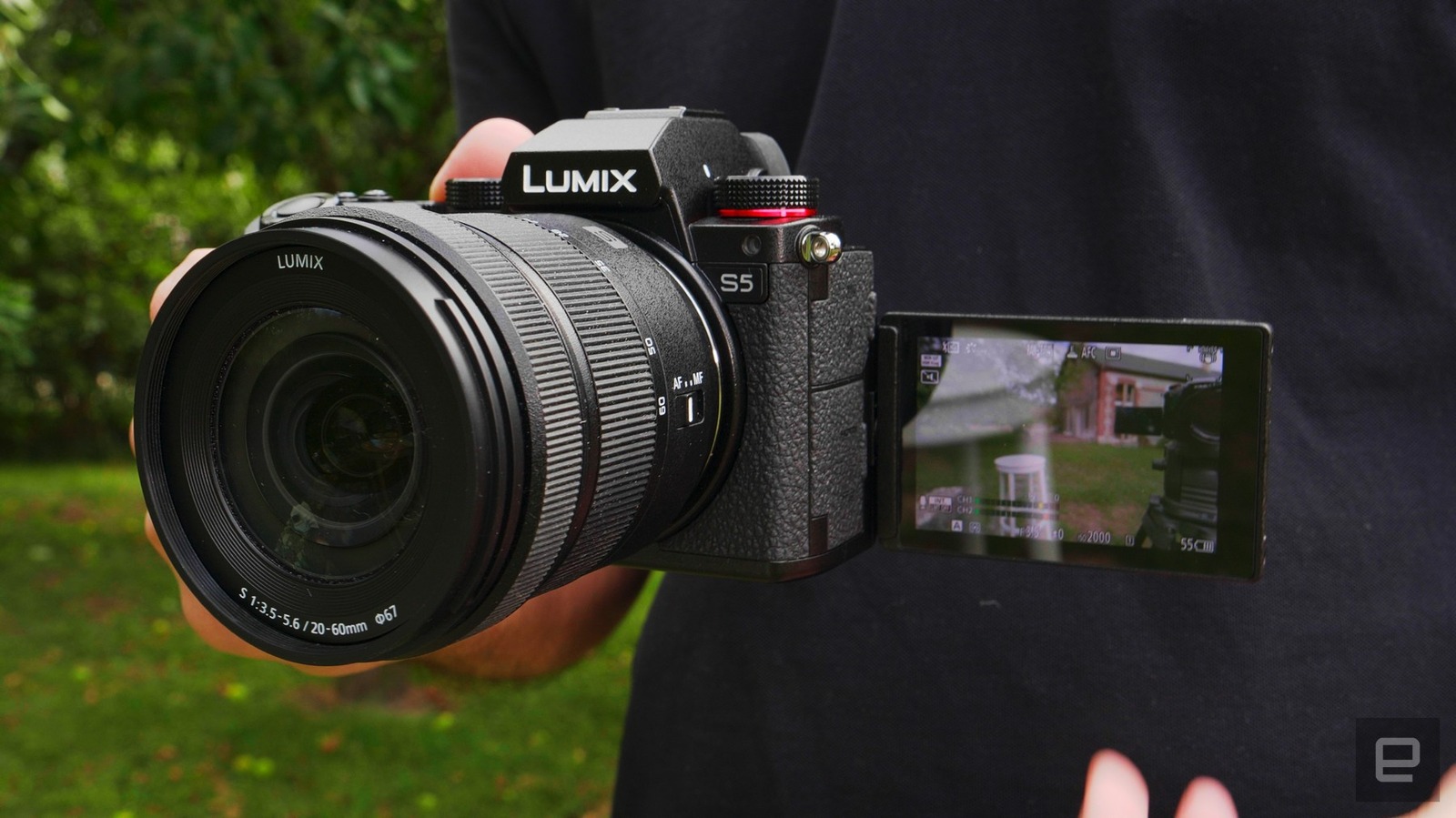

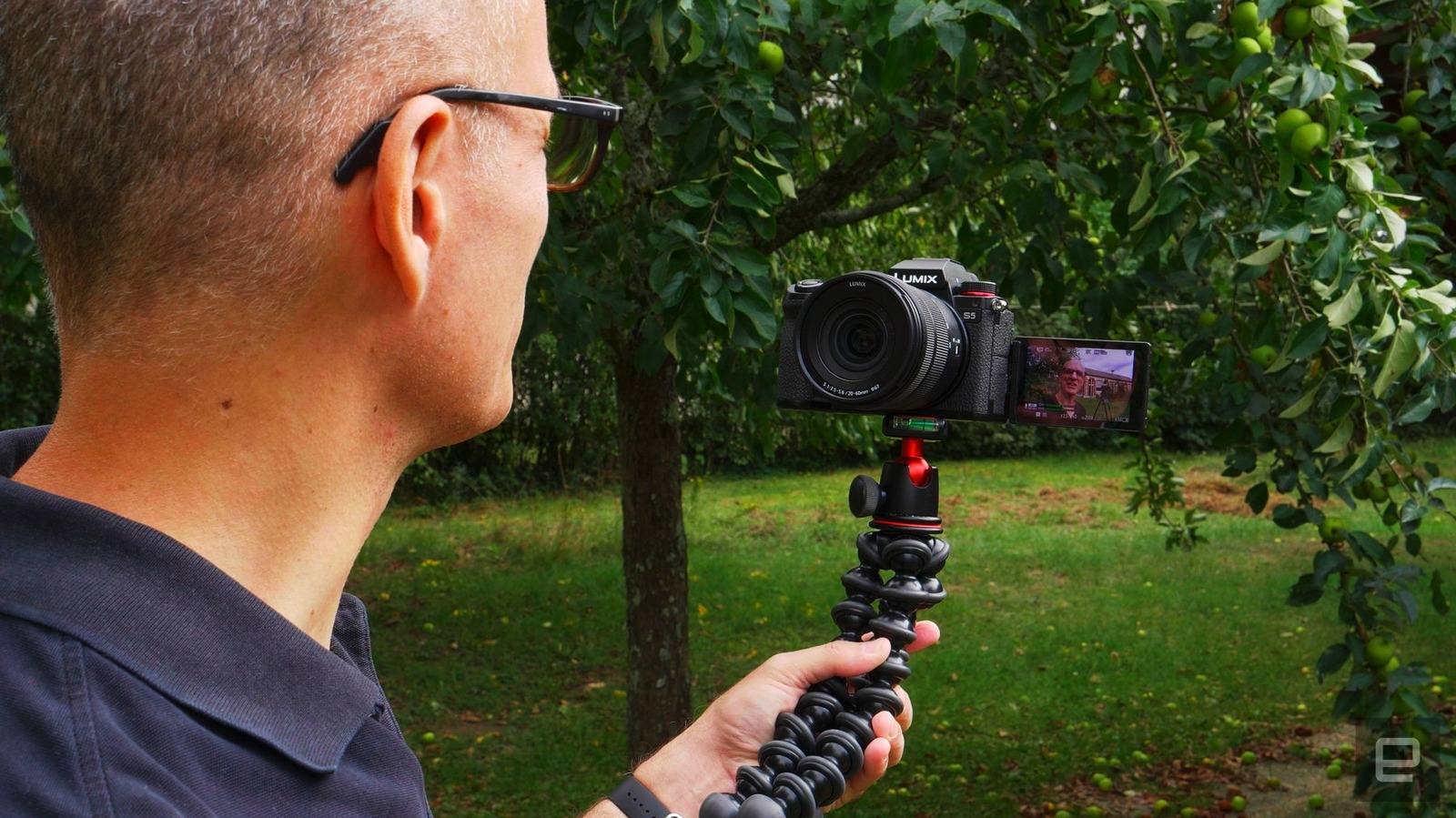

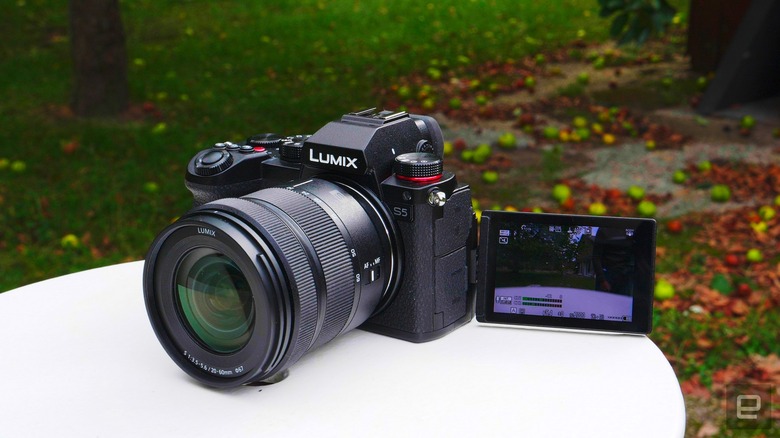

    Panasonic S5 full-frame mirrorless camera flip-around display vlogging
    Steve Dent/Engadget

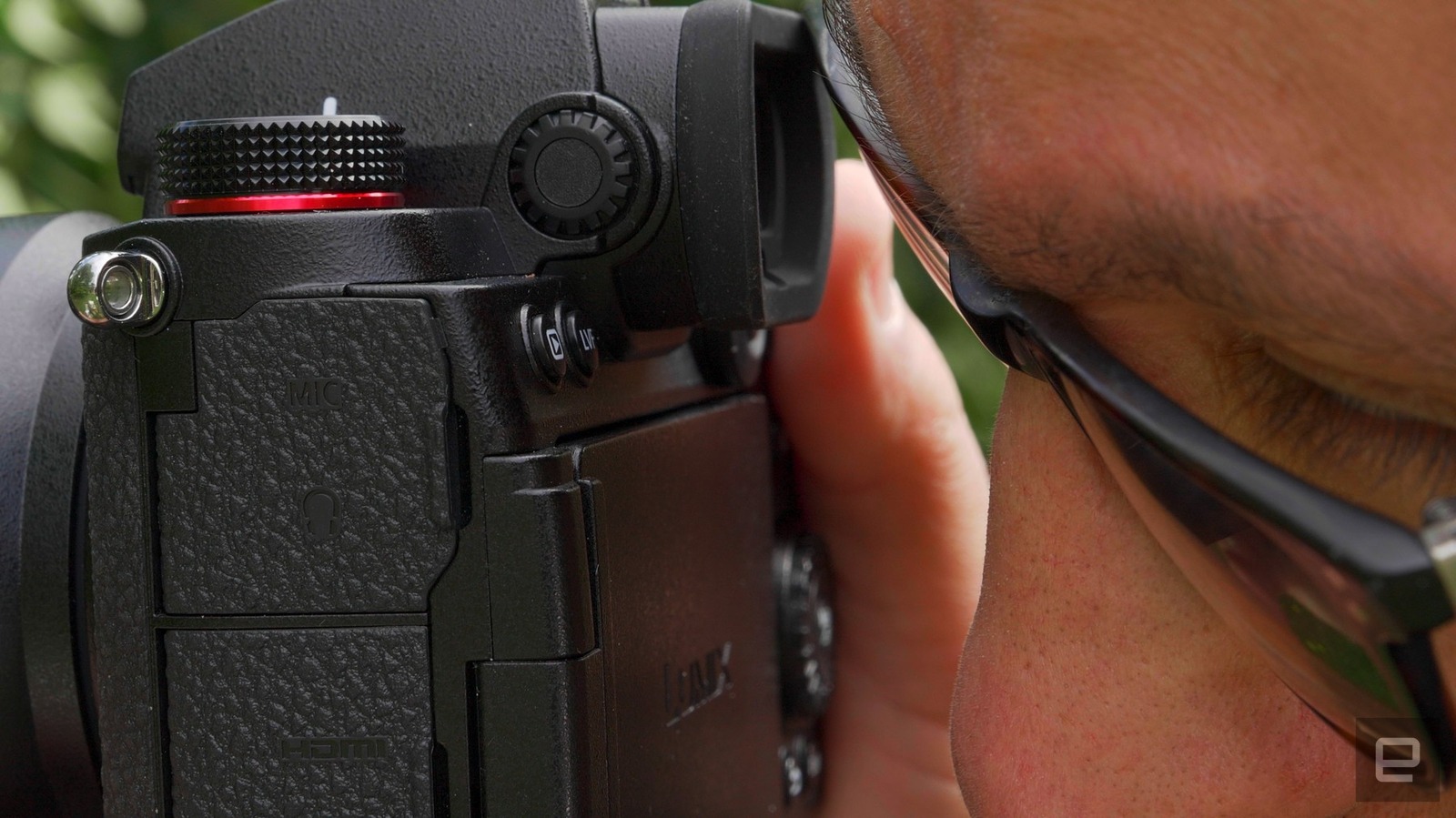

    Unfortunately, the S5 only packs a 2.36 million dot OLED EVF that’s far inferior to the razor-sharp 5.76 million dot OLED model on the S1. Maybe Panasonic figured that video shooters didn’t need a high-res EVF, since they’d primarily use the touch display. I disagree, however -- I would have expected Panasonic to at least use a 3.69 million dot display like the one found on Sony’s similarly priced A7 III from 2018.

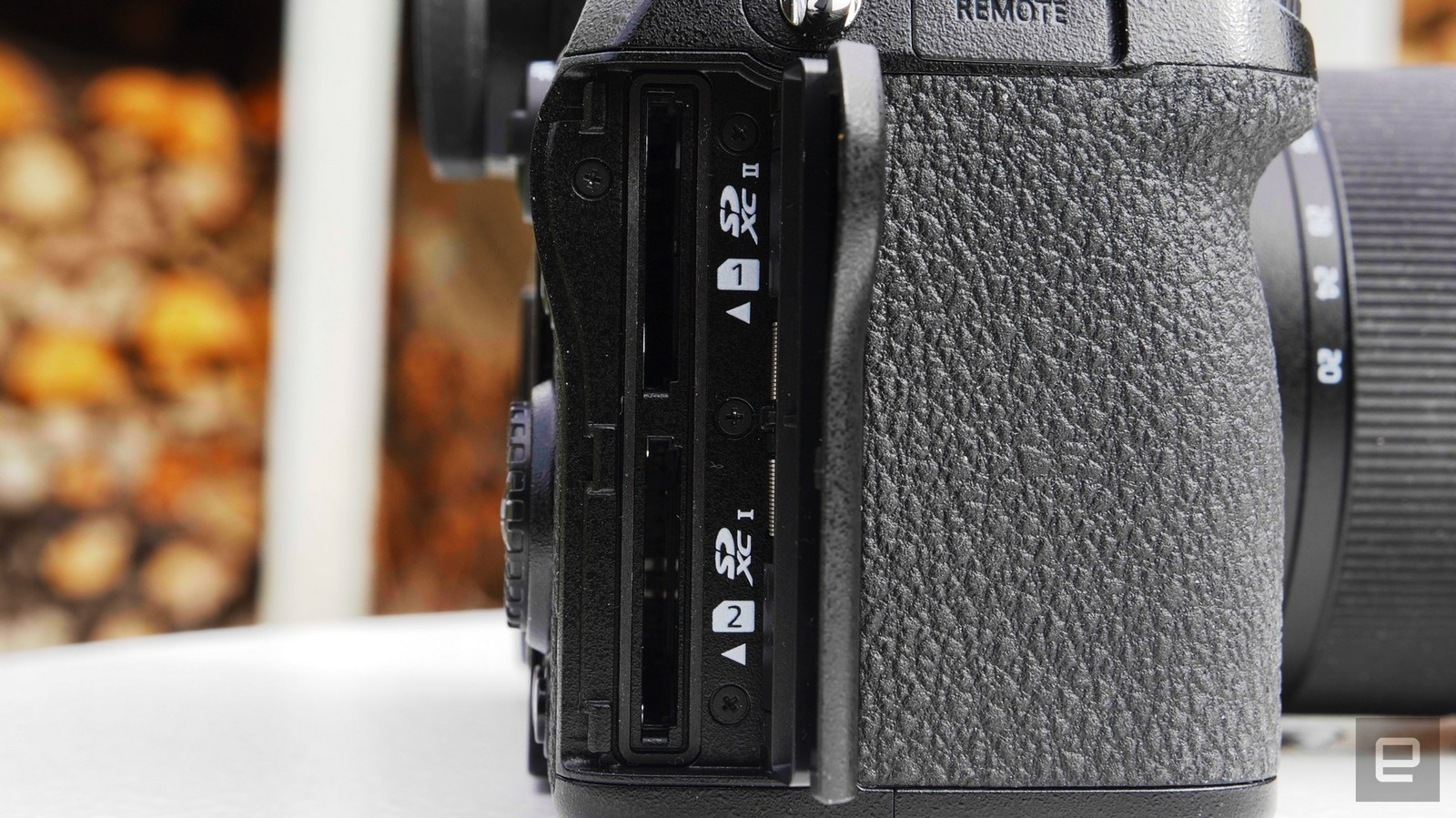

    The S5 also has a small storage compromise. You do get dual SD cards, but only one is a faster UHS-II slot, with the other being UHS-I. Panasonic told me that they did that because the S5 is primarily a video camera and faster speeds don’t help video, since the maximum data rate is 150 megabits per second -- well below what a top UHS-I card can handle.The slower speeds aren’t ideal for burst photo shooting, but then again the S5 is not exactly a sports camera as I’ll discuss soon.

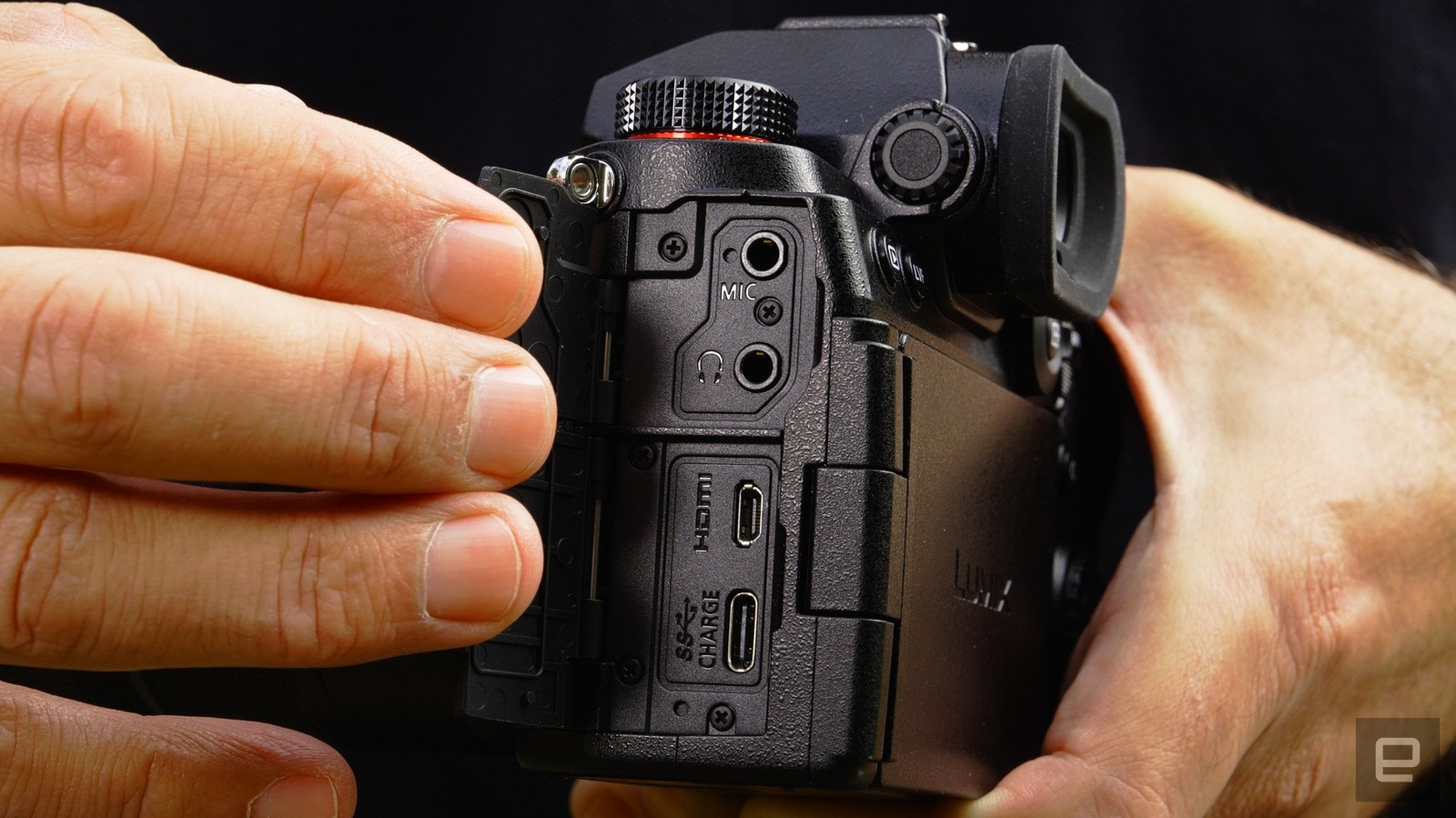

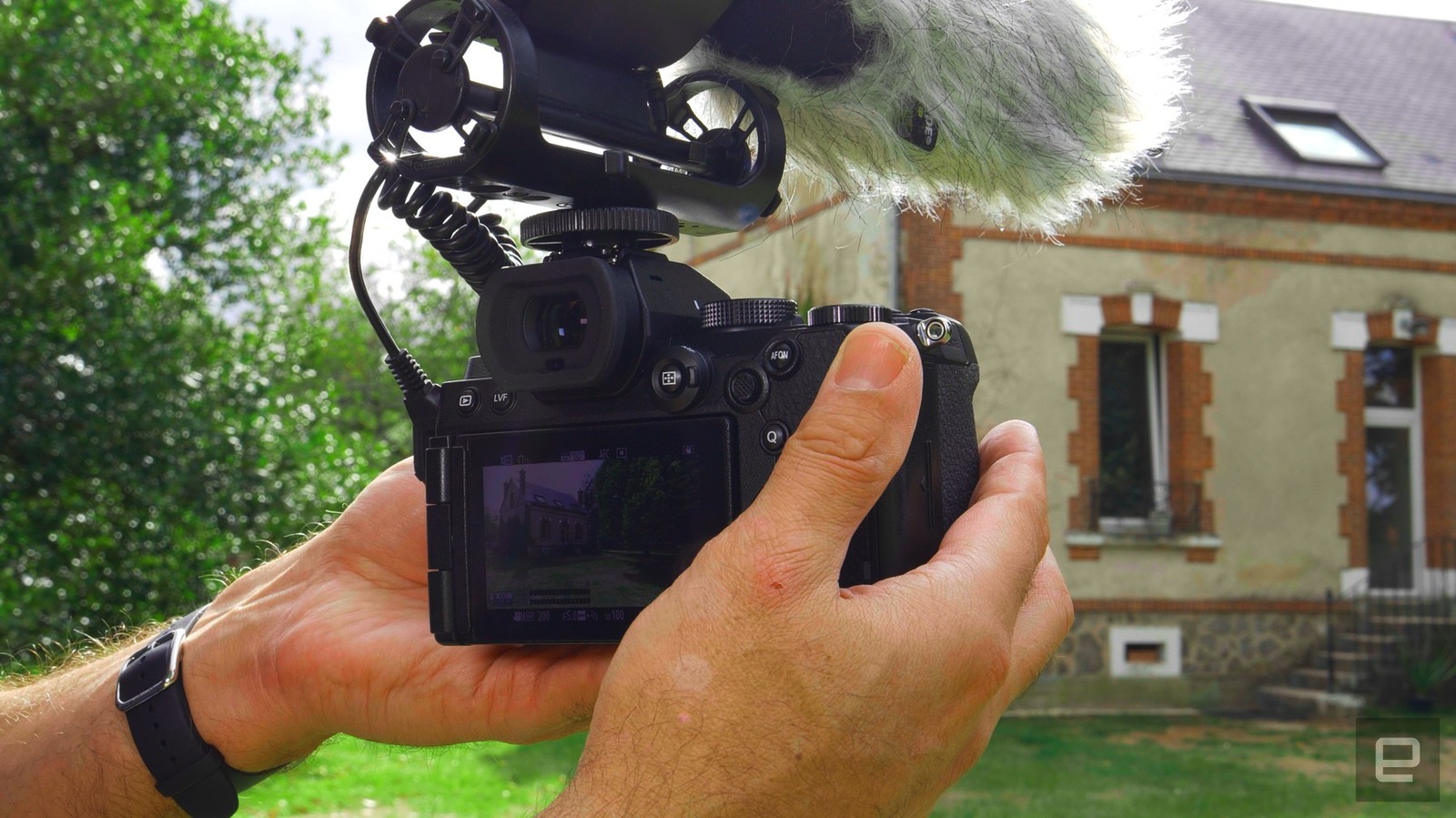

    As for ports, the S5 has both headphone and microphone jacks, with both line and mic level inputs that can accommodate many types of powered and non-powered microphones. It’s also compatible with Panasonic’s XLR1 adapter for multi-channel, XLR audio inputs. However, you only get a micro HDMI and not a full-sized HDMI port like the S1 or GH5 — not ideal for pro shooters who use external recorders.

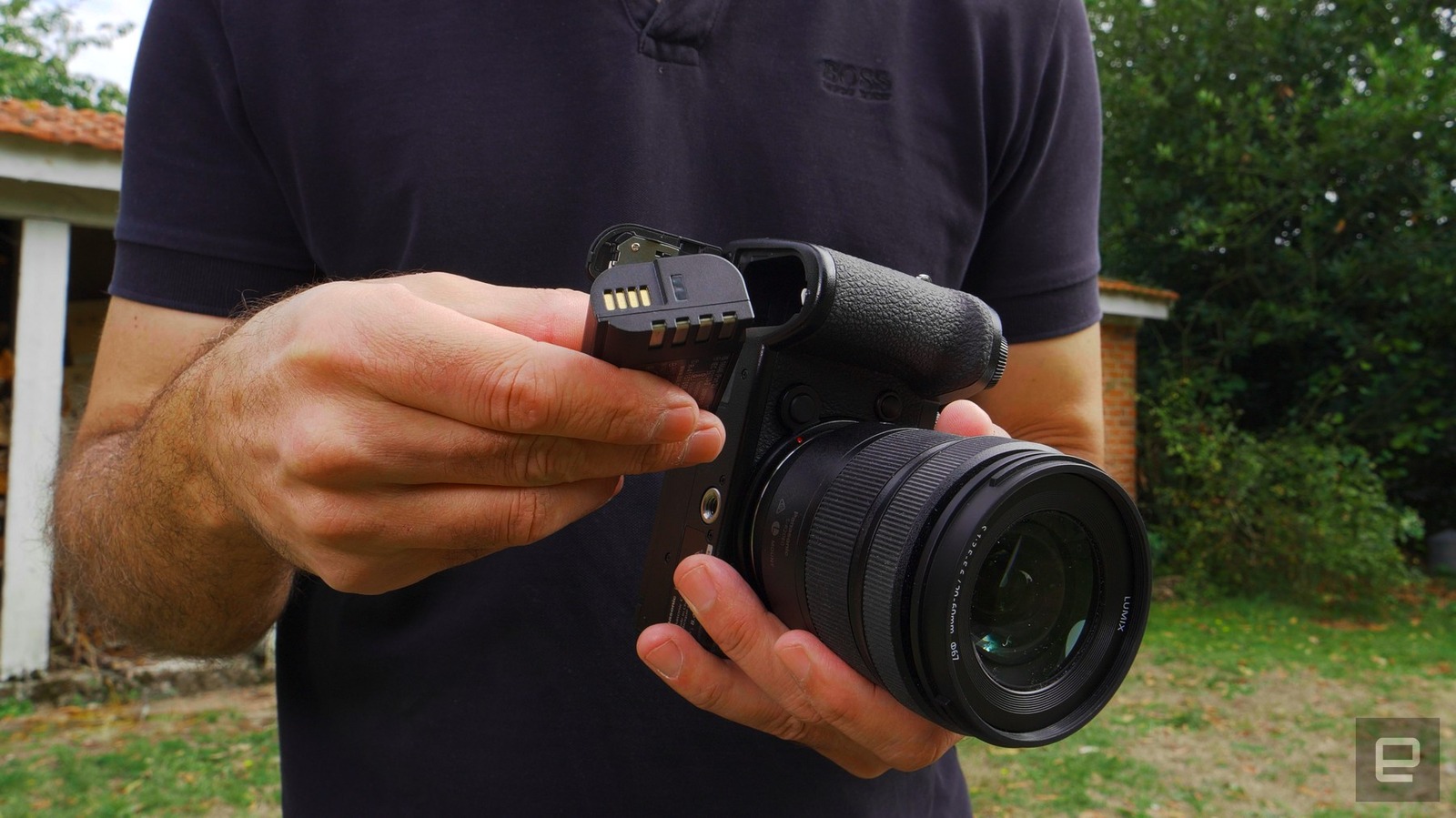

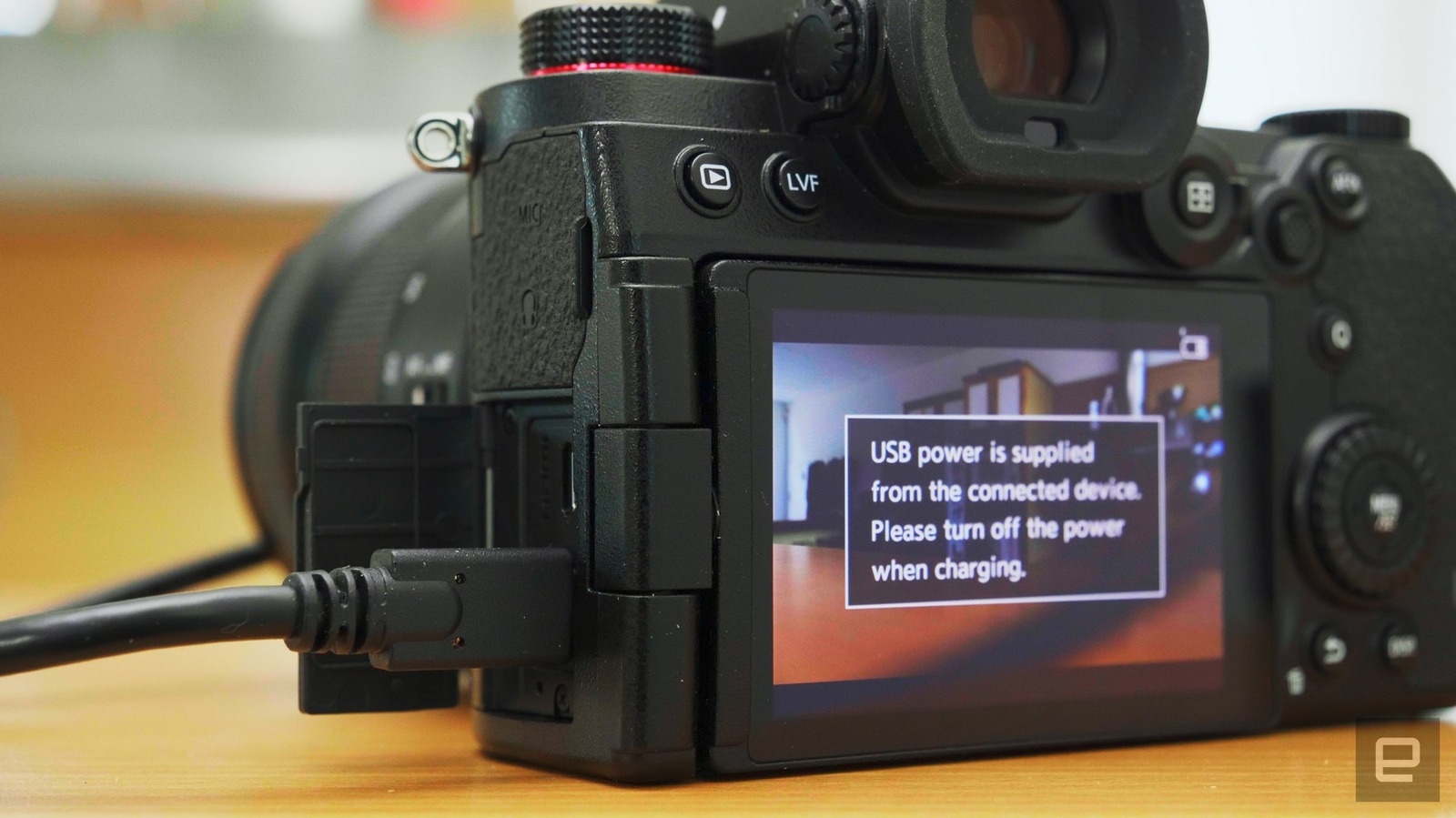

    A nice new feature is the USB-C port that can charge the battery and power the camera at the same time -- a boon for event videographers. The new battery has decent endurance, as it can handle 470 shots per charge and well over an hour of 4K shooting. The new cells can be used in a GH5 (and charged in aftermarket GH5 chargers), but the S5 can’t use GH5 batteries.

    Performance

    Steve Dent/Engadget
    Image credit: Steve Dent/Engadget

    I’ll be brief in regards to still photography, as it’s not a priority with this camera. The S5 is certainly no sports camera, for one thing. It only does 5 fps bursts with continuous autofocus, less than half what the A7 III can handle. On the plus side, it delivers great photos with natural-looking colors and skin tones. It also shines in low-light situations thanks to image stabilization, dual ISO system and the camera’s huge sensor.

    Although the S5 isn’t a high-resolution camera like the A7R IV, for example, it does have a high-resolution mode that combines multiple photos into a single 96-megapixel image. The results can be nice, but you’ll need a tripod to get functional images.

    The S5 does have one advantage over rivals, in that photos don’t have the very minor banding that can be caused by phase-detect pixels on the sensor. Overall, however, the S5 is a video-centric camera, and photos are just an extra bonus.

    Gallery: Panasonic S5 full-frame mirrorless camera sample image gallery | 29 Photos

    The S5 has five-axis image stabilization that works in concert with stabilized lenses. It delivers up to 6.5 stops of stabilization, which is better than the GH5 but worse than the S1. As usual, the optical stabilization alone is great for hand-held video or low-light photos, but it’s no magic bullet. If you’re walking or doing action and need smooth shots, your best bet is to use a gimbal.

    As for the autofocus, there’s good news and bad news. Unfortunately, Panasonic stuck with its contrast-detect system that’s inferior to the phase-detect autofocus used on Sony and Canon cameras, especially when it comes to video. On the positive side, Panasonic has drastically boosted the autofocus system speed and added AI smarts. That makes for faster subject acquisition and smoother face and eye-tracking.

    Continuous autofocus for photos works great, especially considering the relatively slow burst speeds. For video, however, the biggest problem is pulsing, or small shifts into and out of focus, as the contrast-detect system overshoots and recaptures focus. With the S5, however, it’s much less visible than before, thanks to the extra speed and algorithm tweaks. In fact, I barely noticed it except for handheld shooting when I moved the camera around a lot, trying to track a border collie.

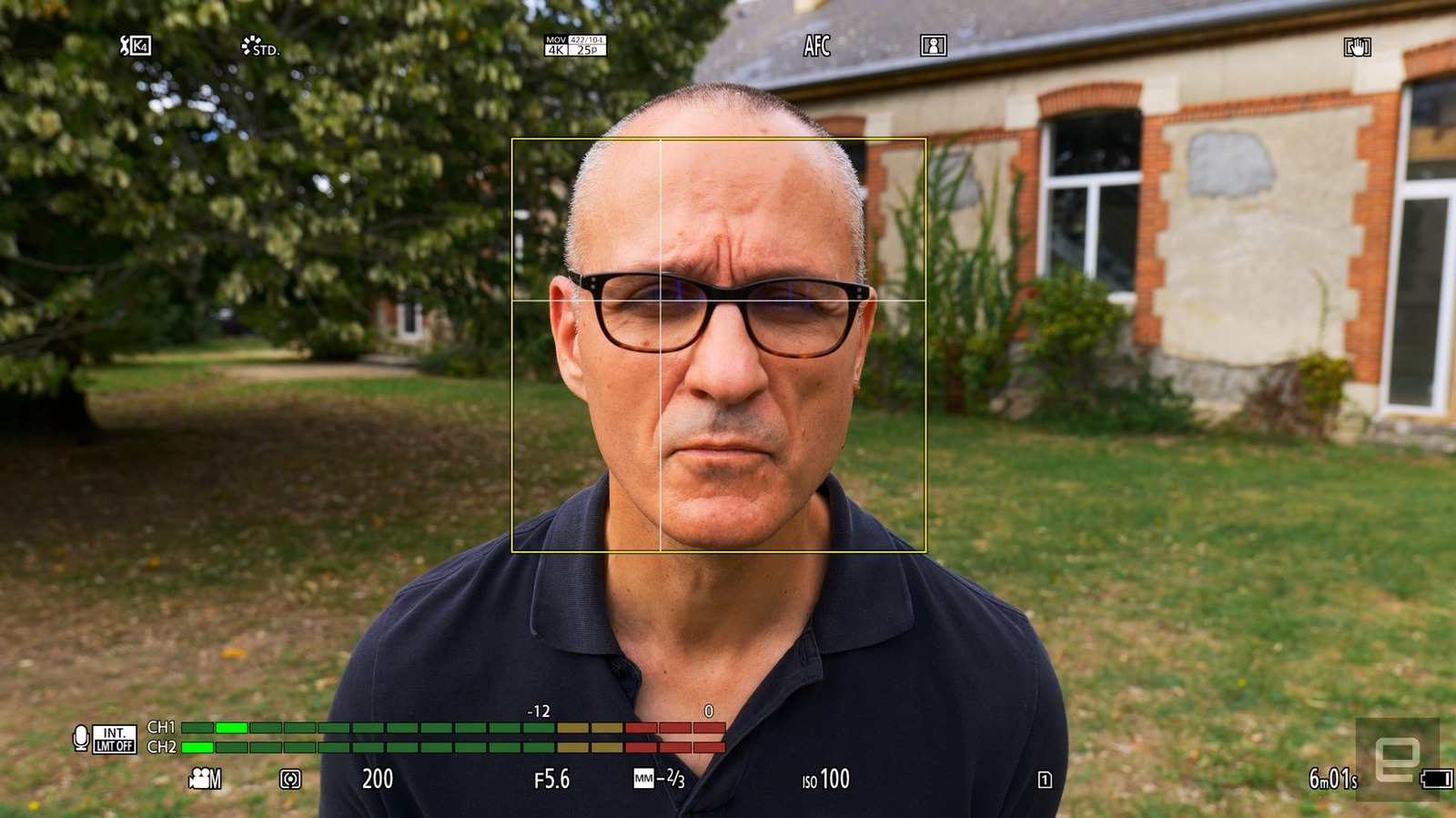

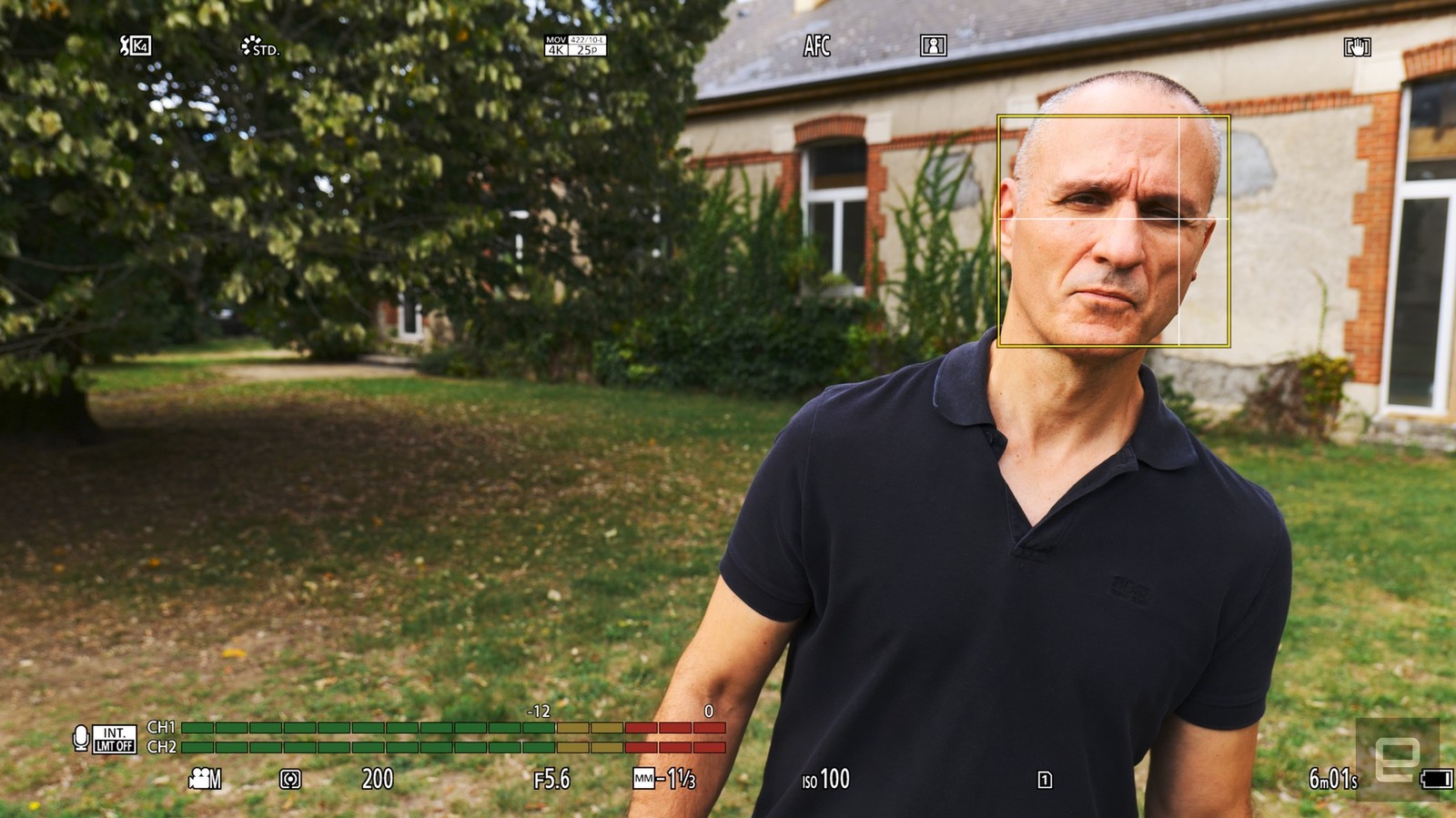

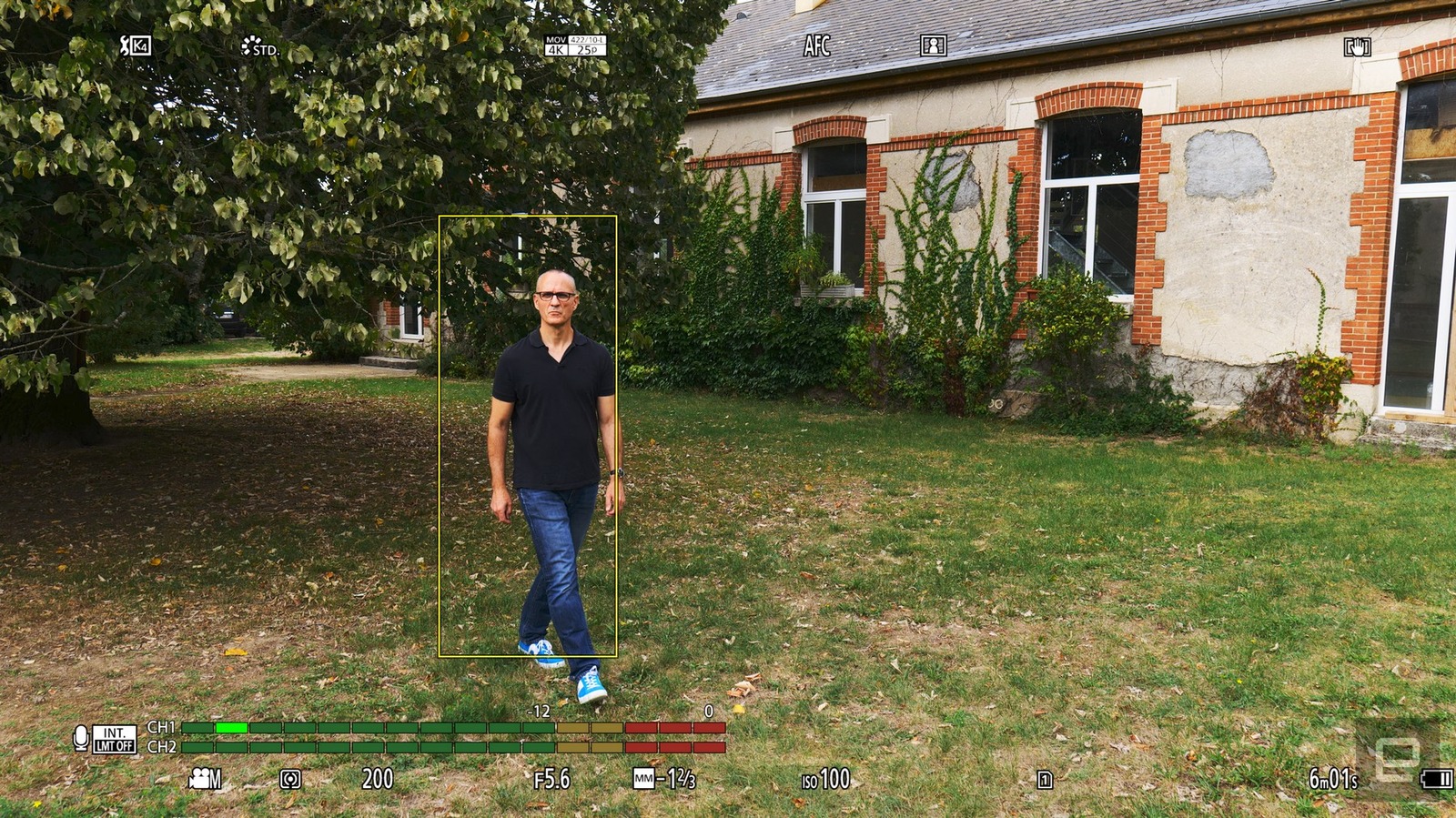

    Panasonic S5 mirrorless camera improved autofocus eye tracking
    Steve Dent/Engadget

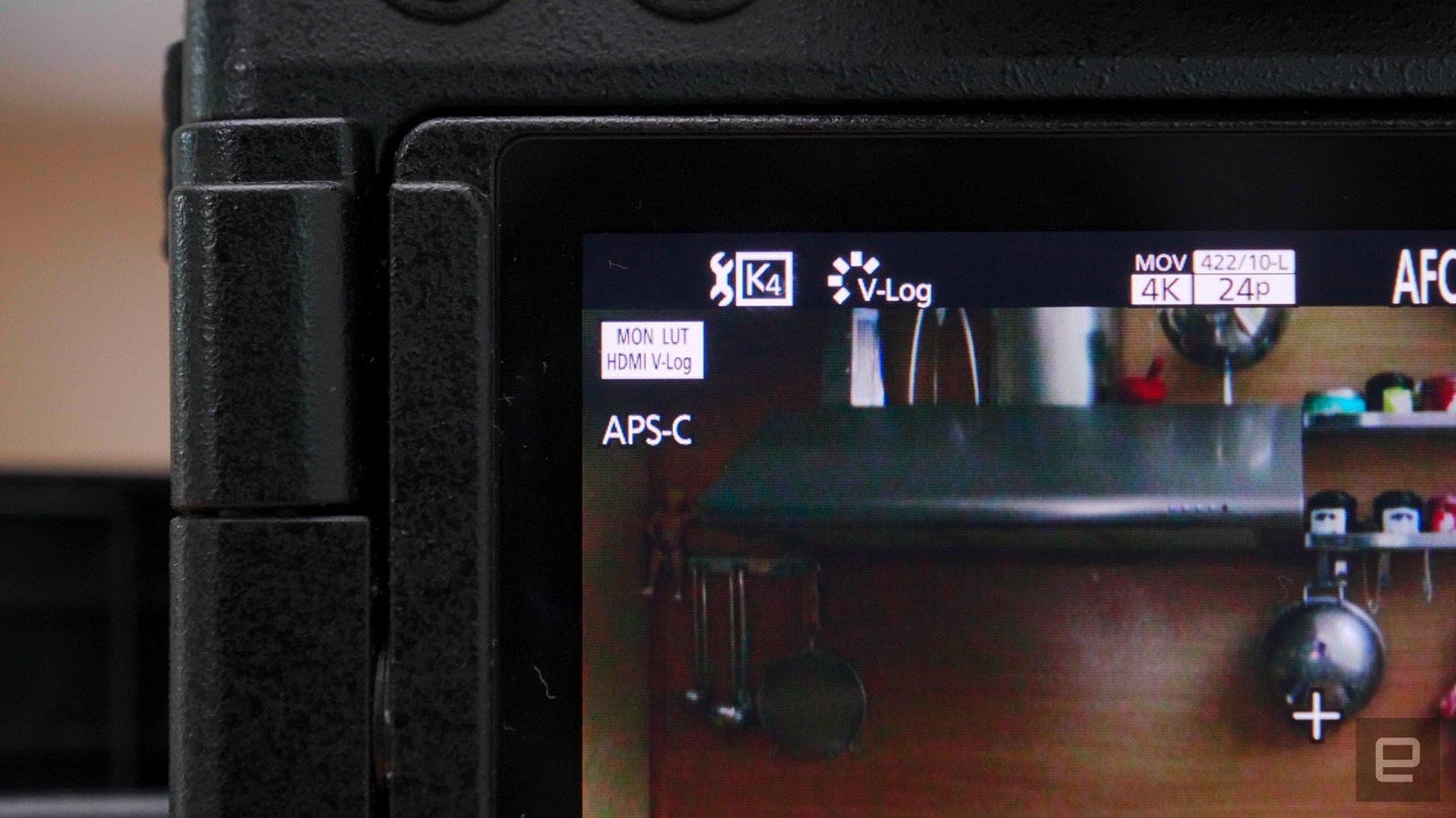

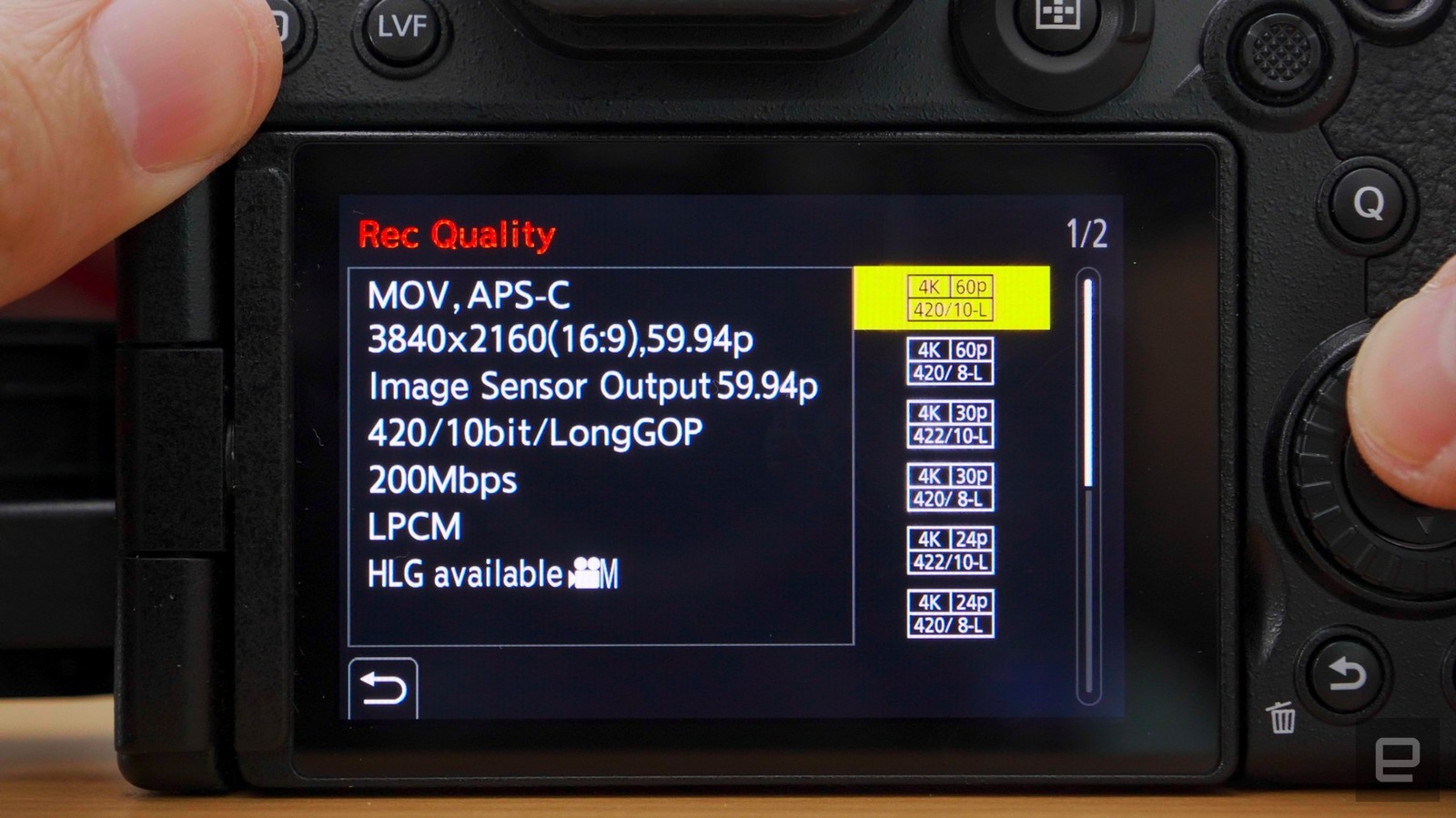

    The S5 can shoot 4K 10-bit video in both full-frame and 1.5X cropped APS-C mode with full quality — giving you either very shallow depth of field or an extra 1.5x “zoom” if you need it. However, the autofocus works a bit faster in APS-C mode because there are fewer pixels to process. All that is to say that if you’re shooting something that’s moving around and need to depend on the autofocus, it’s best to switch over to APS-C mode if possible.

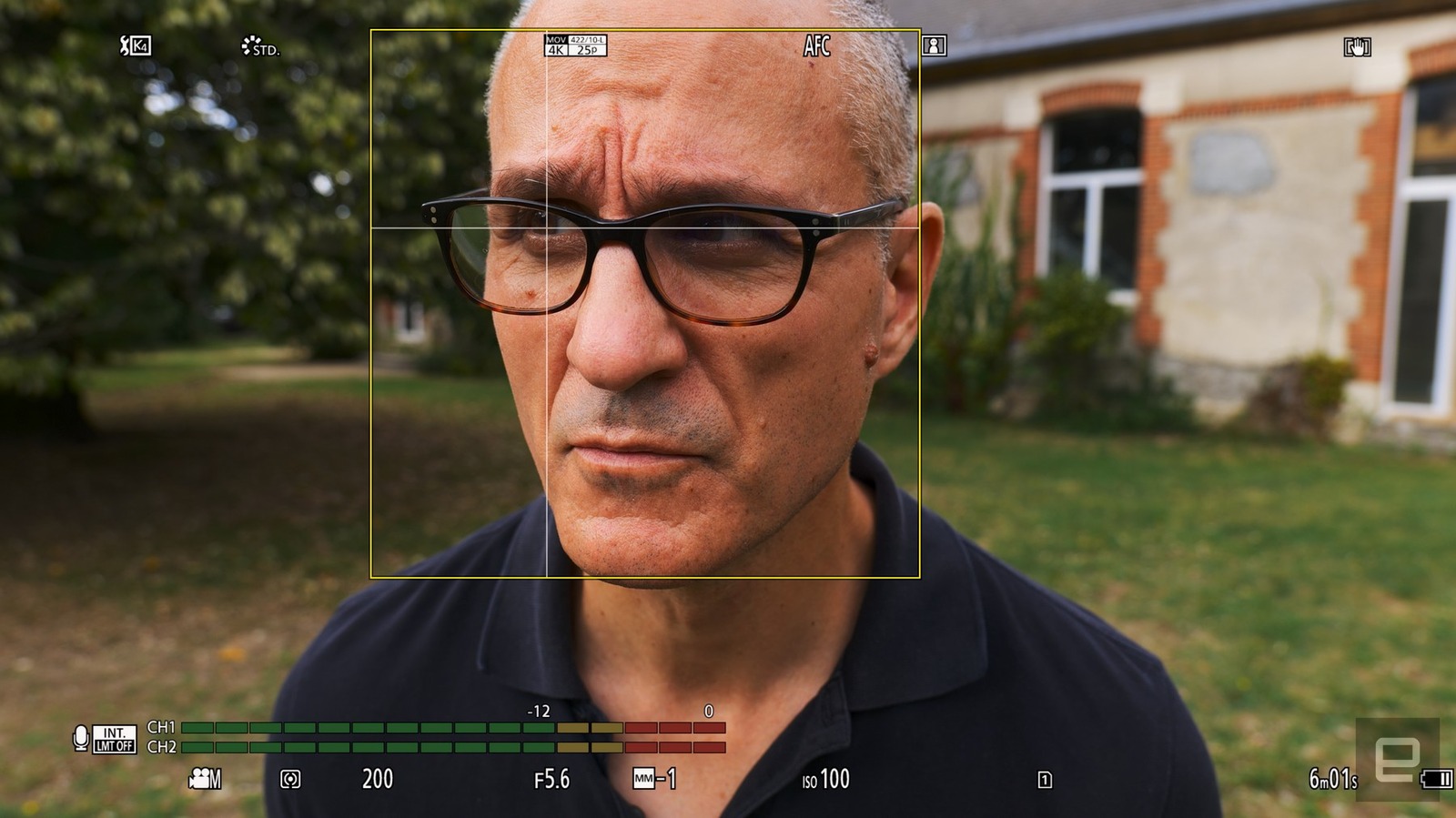

    Speaking of which, the face/eye-detection now finds faces that are much smaller in the frame, and tracks bodies at speeds five times faster than before. It can also follow your subject if they turn or tilt their heads, but can get fooled if they walk out of frame.

    Overall, the S5 nails focus a lot more reliably than the larger S1 series. However, there’s good news for S1, S1H and S1R owners -- all of those cameras will soon get firmware updates that give them the same accelerated autofocus capabilities of the S5.

    Video

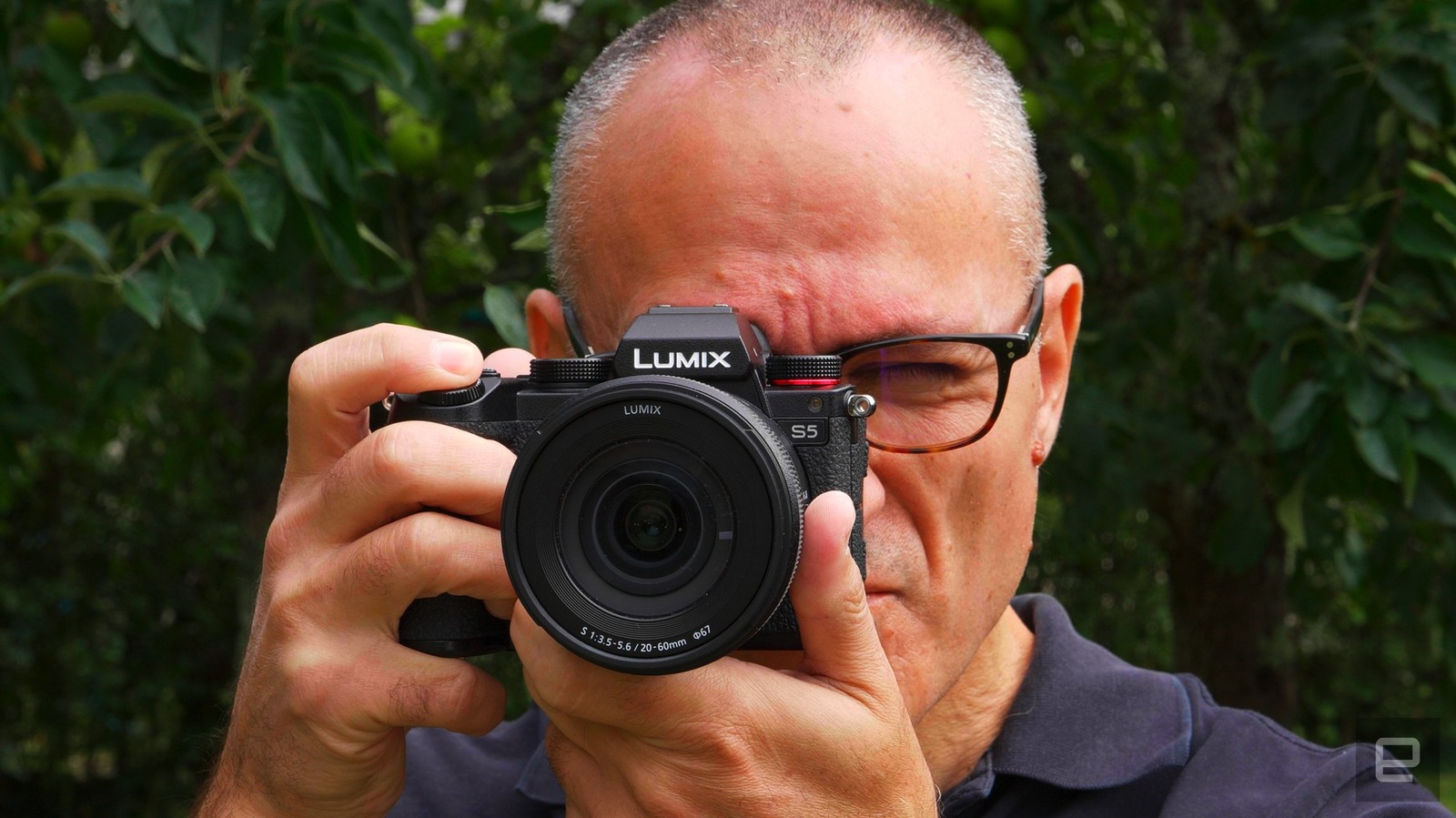

    Panasonic S5 full-frame mirrorless camera
    Steve Dent/Engadget

    Now, let’s talk about the S5’s true forté, video. Cutting to the chase, the S5 outshines the larger and more expensive S1. Period. Like the S1, it supersamples to capture extremely sharp full-frame, APS-C and pixel-for-pixel video at up to 4K and 60 fps. After that, however, the S5 has a clear edge -- even if you have the $200 video firmware option for the S1. .

    You get 10-bit internal 4K video at up to 60 fps, rather than just at 30 fps with the S1. At the same time, it supports external 4K 10-bit HDMI output at up to 60 fps. It can also handle 1080p video at up to 180 fps for action and slo-mo. Unlike the GH5, it also comes with V-Log-L video that allows for 14+ stops of dynamic range and HDR video recording.

    In addition, by the end of the year, Panasonic will make the S5 a lot more attractive for video pros via a firmware update. That includes support for RAW video with the $600 Atomos Ninja V, with resolutions up to 5.9K (5,888 x 3,312) at 30 fps. It’ll also deliver support for C4K (4,096 x 2,160), a video assist function, vectorscope display and shutter angle support (very handy for videographers) on top of shutter speed.

    Panasonic said that it tested the S5 recording limits over a wider temperature range than rivals like Canon -- which is suffering from some bad press over potential overheating issues on the new EOS R5 and R6 models. At temperatures up to 40 C (104 F) the S5 has a 30-minute recording time limit for 4K 60p and 4K 10-bit 30p video, but Panasonic said it could potentially run for longer under normal conditions. At different resolutions and frame rates, like most 1080p modes and 8-bit 4K, there are “no limitations” on recording, the company told Engadget.

    Panasonic S5 mirrorless camera 4K 10-bit video frame grab
    Steve Dent/Engadget

    If you were looking for the l-frame recording mode found on the GH5 (which records each frame individually to supposedly speed up editing) it didn't make the cut due to overheating concerns. I didn't particularly miss it.

    I tried vlogging with the S5, and it performed really well. The flip-out touchscreen makes it easy to change the focus point or video settings, while the stabilization smooths out minor bumps and jolts. And while contrast-detect autofocus isn’t perfect, it works very well with the camera near your face. The built-in mic has decent enough sound quality, but it’s also easy to plug in an external shotgun or lapel mic. For $2,000 (plus a lens), I believe the S5 is the best full-frame vlogging camera available right now.

    As Sony well knows, rolling shutter can be hard to control on CMOS sensors. Luckily, the S5 handles it better than most other full-frame cameras. It’s still present if you do quick pans or jolt the camera, but it’s reasonably well controlled. If it becomes an issue, you can reduce it considerably by switching the camera to cropped APS-C or pixel-for-pixel recording modes.

    In terms of video quality, the S5 gave me exactly what I expected. I liked the sharp 4K video with realistic colors and natural flesh tones, while the 10-bit V-Log-L video delivered excellent dynamic range and plenty of room to color correct or create HDR videos. Panasonic said it used the same color science on the S5 as its professional Varicam cameras. That means film crews could use the S5 as a B-cam and easily match up the colors.

    The S5 has an ISO range from 100-51,200 (expandable to 50-204,000 ISO), along with a dual native ISO system that automatically switches to a more light-sensitive circuit in dim lighting. With all that, it handles low-light conditions very well. Don’t expect the near pitch-black shooting capability of Sony’s A7S III (which has quadruple the pixel area) but the S5 can keep up with the A7 III, keeping noise down at ISOs as high as 25,600. Even at those levels, video is sharp and retains color saturation and accuracy.

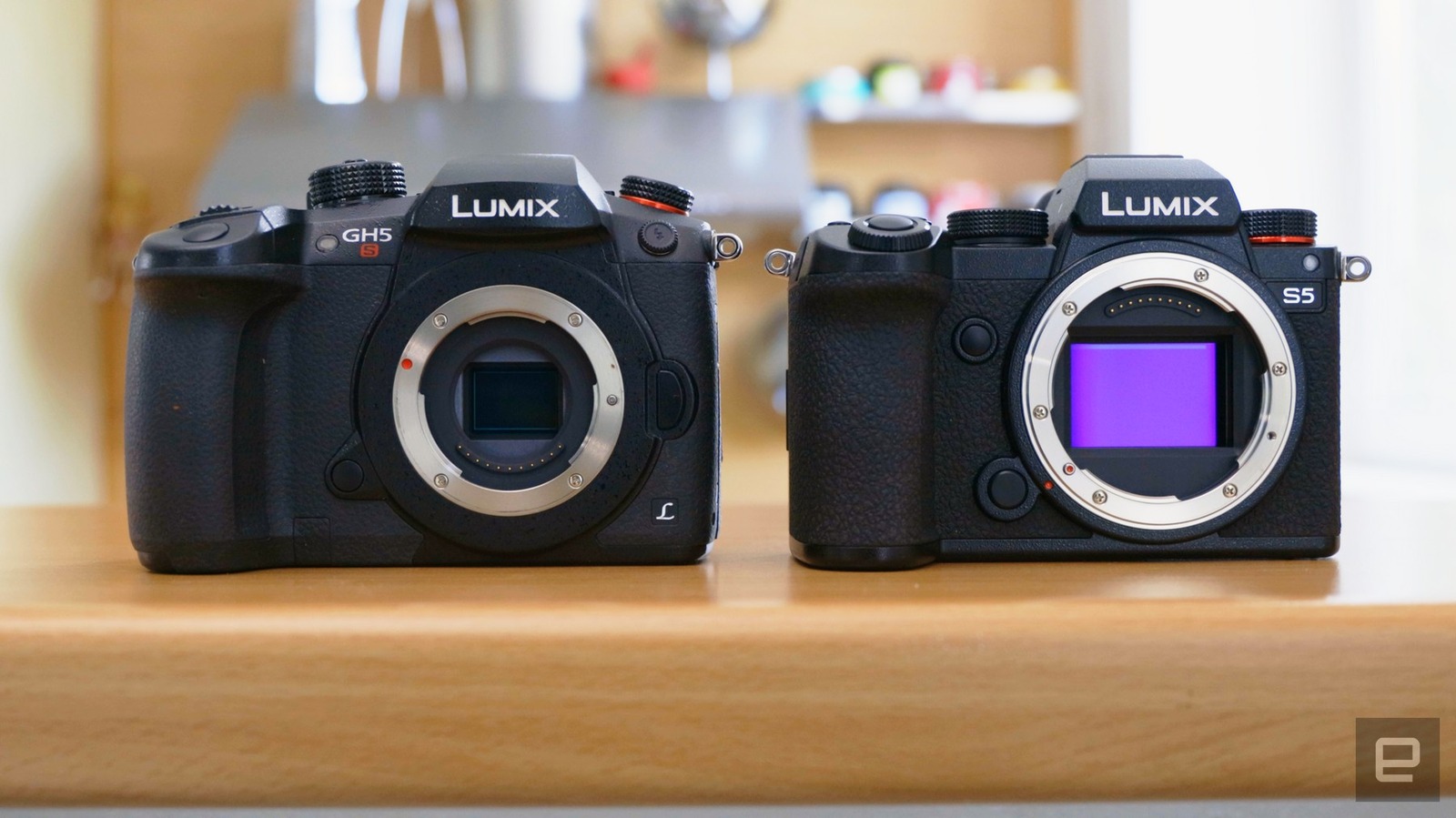

    The S5 has similar controls to the GH5, so users of that model won’t have much trouble switching over. However, the S5’s huge sensor offers a much shallower depth of field with more creative options. For example, you’ll be able to isolate interview subjects from their backgrounds without a super-fast lens.

    Wrap-up

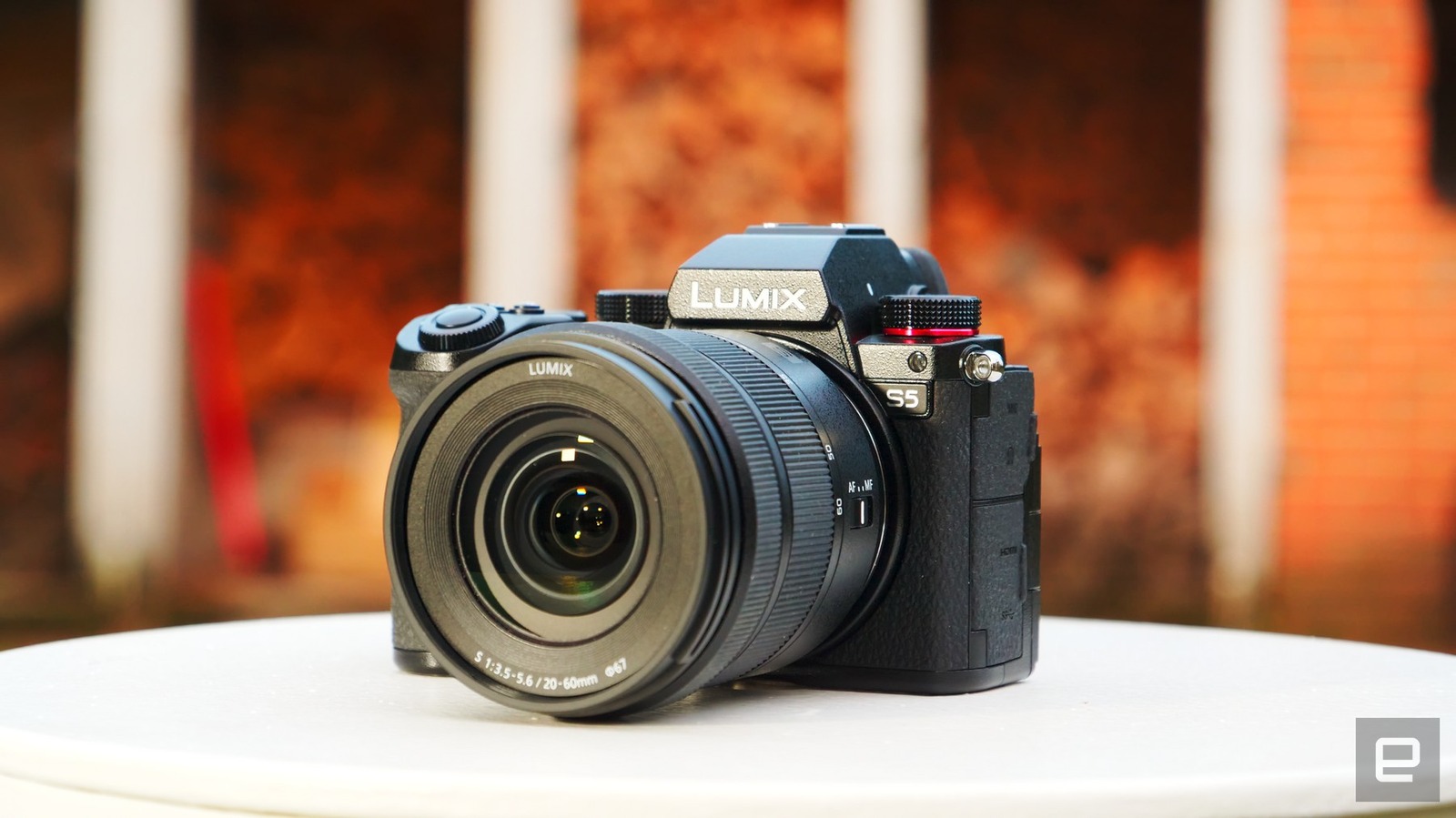

    Panasonic S5 mirrorless camera
    Steve Dent/Engadget

    With the S5, Panasonic took its good existing S1 camera and effectively made it great by fixing the slow autofocus, adding extra 4K video features and making it a lot smaller. It would normally be an easy pick for video creators, but the competition hasn’t stood still, either.

    Canon’s $2,500 EOS R6 has higher internal data rates and superior Dual Pixel phase-detect autofocus, plus it’s better for still photography. However, the S5 is $500 cheaper and should suffer less from overheating issues that can cripple video recording on the R6. The Nikon Z6 can be found for $1,800 right now, but it lacks key features like internal 10-bit 4K recording and dual card slots.

    Fujifilm’s $1,700 X-T4 matches the S5 nearly feature-for-feature, but has a smaller sensor that’s worse in low light and lacks that super-shallow depth of field. For $500 less, Panasonic’s own GH5 has a few extra video features (like the aforementioned I-frame option), but it has an even smaller sensor. Meanwhile, the S5 seems to have made the S1 redundant, as it does nearly everything better while being smaller and cheaper.

    The Panasonic S5 is now up for pre-order and will start shipping in mid-September at $2,000 for the body only, or $2,299 with the 20-60mm f/3.5-5.6 lens that I found ideal for vlogging. It’s also offering a limited pre-order promotion with a free Sigma 45mm F2.8 DG DN L-mount lens, while supplies last, provided you purchase an S5 by September 30th. That would give you a very decent (and free) normal prime lens to get started.

    When you add up all the features, including the stabilization, large sensor, 10-bit 4K options, smaller size and flip-out display, the S5 is an impressive hybrid video and vlogging camera. Right now, I’d say it’s the best you can get for $2,000 -- to do any better, you’d have to spend considerably more.
